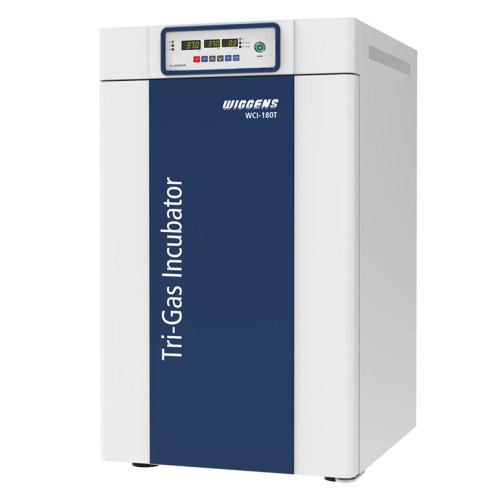

Alarm System Tri-Gas Incubator Volume: 180L Model: WCI-180T Wiggens Germany

The Tri-Gas incubator is ideal for the experiments of the cultivation of animal cells, sperm/ovum, anaerobic cells, all sorts of microbe cells, hatching/germinating and special tissues.

Options
Access port
25mm Access Port is available at left side. (Upon ordering and additional charge)

UV sterilization
4W UV is placed on the chamber ceiling and beside the circulation fan. The UV light cannot reach the sample and sterilization is operated during culturing.

Peltier cooling system
With Peltier cooling system in WCI-40T & WCI-180T, It can work below room temperature.

Copper chamber
WIGGENS customize chamber with copper plate chamber for enhanced contamination protection.

O2 Control
Multi Gas Supply (N2 & O2) is available for all CO2 incubators.

Hot air sterilization
Maximum 125℃ Dry Hot Air in WCI-40T, WCI-180T No need to remove IR CO2 sensor.

Monitoring System
Analog connection port has been designed to observe the status of equipments in real time even in the far distance.

Lower gas consumption. Lower heat loss.
Faster recovery easy classification for various samples. 5 Split Door for WCI-40T 6 Split Door for WCI-180T.

Features
6 Sides Direct Heating System
The electric heating wire is covered on all sides of the chamber which makes good uniformity and provides fast heat-up & temperature recovery. 3 parts of heating section are controlled and calibrated individually by 3 individual temperature sensors.

Dry Wall and Air Jacket
Warm air from heating wire is preserved in space between the chamber and the insulation layer. It helps temperature recover faster and minimize heat loss. Drywall withinsulation requires no regular maintenance.

DUAL BEAM IR CO2 Sensor
Fast & precise detection for CO2 gas regardless of temperature and humidity.

Natural Humidification using Water Tray
The heater on bottom warms the water in tray and it makes humidification. The circulation fan delivers the moisture formed from the water to the entire chamber.

No Condensation
Heating by front door heater & frame heater prevents condensation in the chamber and on the glass door.

Microprocessor PID Control
Intelligence Control for CO2 density, Temperature, Alarm, Automatic Decontamination (Optional).

HEPA filtration

Gentle Air and Moisture Convection
Gentle air and moisture convection air and moisture in the chamber are distributed naturally by 6 side heating and the air circulation fan.

Easy to clean
Rounded corner allows easy cleaning. The entire chamber is made of stainless steel (SUS304).

Alarm System
Buzzer to alarm low or high deviation of CO2, Temperature.

Over Heating Limit
Heating is automatically cut by safety device when temperature control failed or there is excessive heating over set point.

Perforated Shelves
Perforated shelves are good for natural air flows and are made of stainless steel which are resistant against rust and contamination.

Specifications
