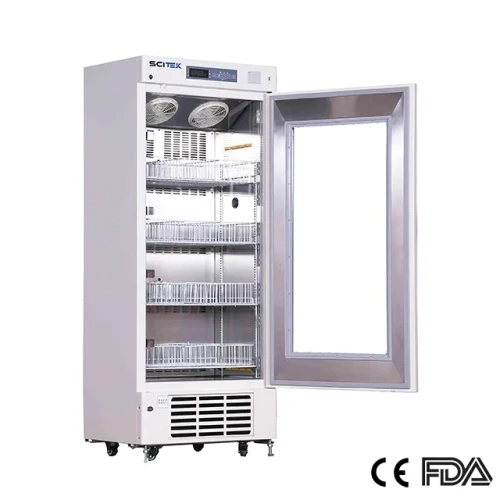

Blood Bank Refrigerator with Auto-defrost Scitek Global
This blood storage
refrigerator is designed to provide high quality storage and maximum protection
for life-saving blood. Multiple parameters provide options for blood component
and whole blood storage.
Features
1.
Forced-air cooling system with
electrical heat compensation controlled by microprocessor.
2.
Auto-defrost system ensure no
moisture on cooling surface.
3.
Clear LED screen and control panel
support easy display and operation.
4.
Frost free door made by three-layer
toughened glass.
5.
Safety lock prevents unauthorized access.
Reability
1.
Lockable doors and password protected
microprocessor parameter setting.
2.
Build-in backup battery up to 72
hours to display temperature and operate audible and visual alarm systems.
3.
Audible buzzer and visible flashing
temperature alarm system for High/low temperature, power failure, voltage
abnormal, door ajar, backup battery.
4.
Separated inner acrylic doors ensure
less affection on each space when the other door opened.
Specification
|
Parameter / Feature
|
BR-4V110
|
BR-4V210
|
BR-4V370
|
|
Capacity (L)
|
108
|
208
|
368
|
|
Bloodbags (450ml) Qty
|
53
|
106
|
240
|
|
Bloodbags (400ml) Qty
|
60
|
120
|
270
|
|
Bloodbags (300ml) Qty
|
66
|
132
|
300
|
|
Bloodbags (200ml) Qty
|
120
|
240
|
540
|
|
Internal Size (WxDxH) (mm)
|
432×462×478
|
432×462×978
|
685×429×1380
|
|
External Size (WxDxH) (mm)
|
540×630×1030
|
540×640×1530
|
785×565×1920
|
|
Compressor (Qty)
|
EMBRACO / 1
|
EMBRACO / 1
|
EMBRACO / 1
|
|
USB Port
|
Optional
|
Optional
|
Standard
|
|
Shelves / Drawers (Qty)
|
Shelves / 2
|
Shelves / 4
|
Shelves / 4
|
|
Sound Emission (dB)
|
49.6
|
51.2
|
51.2
|
|
Consumption (kWh/24h)
|
2.31
|
2.09
|
4.69
|
|
Net / Gross Weight (Kg)
|
74 / 95
|
96 / 120
|
128 / 135
|
|
Shipping Size (WxDxH) (mm)
|
700×585×1200
|
590×700×1700
|
890×650×2100
|
|
Temperature Range & Sensor
|
4 ± 1 ℃ (at Room Temp: 10~32℃) |
NTC Sensor | Microprocessor Controller
|
|
Cooling System
|
Air cooling / Auto Defrost |
R134a Refrigerant (CFC Free)
|
|
Display
|
Digital display
|
|
Audible & Visible Alarms
|
High/Low temperature, High
ambient temperature, Sensor error, Low battery, Power failure backup system
(alarm) (72h)
|
|
Materials
|
Internal: Stainless steel, grade
304
External: Electro-galvanized steel with antimicrobial powder coating
|
|
Standard Accessories
|
Caster: 2 Swivel + 2 Rigid | Test
Hole: 1 Qty / 25mm Diameter
|
|
Power Supply
|
AC110/220V ± 10%, 50/60Hz
|
