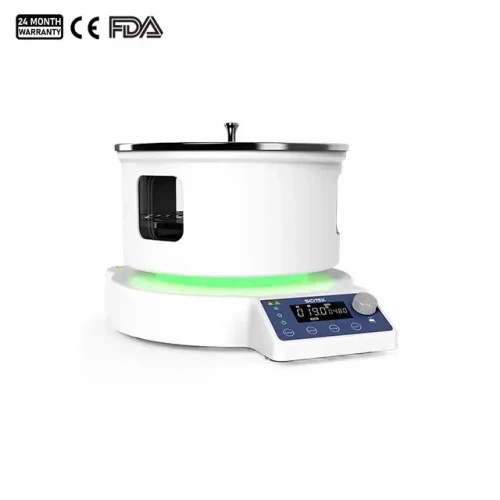

Digital Thermostatic Magnetic Stirring Bath Scitek Global
Suitable for experiments and production
applications requiring precise temperature control and synchronous stirring,
such as chemical synthesis, materials preparation, and biological sample
processing. The transparent glass inner liner facilitates real-time observation
of product changes during the reaction process, ensuring the safety and data
accuracy of experiments and production.
Features
ü 1.Dual-purpose
water bath and oil bath, simultaneously stirring the bath solution and sample
in the flask for uniform heating.
ü 2.Supports
forward and reverse rotation to adapt to different stirring needs.
ü 3.LCD
screen displays real-time speed/time/temperature, along with operating status
indicator lights (green flashing for running/constant temperature, red for
alarm).
ü 4.DC
brushless motor: spark-free, long lifespan, low noise, maintenance-free, and
stable operation.
ü 5.Multiple
safety protections: includes protection against dry burning, overcurrent,
grounding faults, and over-temperature.
ü 6.Automatic
error reporting and heating stop in case of overheating or sensor malfunction;
automatic power-off in case of short circuit.
ü 7.Residual
heat warning (50 °C, "HOT" flashing, continues to indicate even after
power failure), effectively preventing burns.
ü 8.High
borosilicate glass inner liner is resistant to thermal shock and not easily
broken; high-temperature resistant outer shell prevents direct contact burns.
ü 9.Heating
stops but stirring continues after countdown ends to prevent thermal damage to
the sample; supports forward and reverse rotation.
ü 10.Safety
lock prevents accidental changes to the operating status.
Specification
|
Model
|
OWB-S220V3
|
OWB-S220V5
|
|
Glass Tank
Dimension (mm)
|
Φ220×105
|
Φ240×135
|
|
Temperature Range
|
RT–220 °C
|
|
Max. Stirring
Volume (L)
|
3
|
5
|
|
Max. Magnetic Bar
Length
|
40 mm
|
|
Speed Range
|
100–1500 rpm (F/R)
(10 rpm Step)
|
|
Temperature Sensor
|
PT1000
|
|
Temperature Control
Accuracy
|
±1 °C
|
|
Temperature Display
Accuracy
|
0.1 °C
|
|
Timer
|
0 to 99h59min
|
|
Heating Pan
Material
|
High borosilicate
glass+stainless steel base
|
|
Motor Type
|
Brushless DC motor
|
|
Protection Class
|
IP21
|
|
Power Supply
|
AC 220/110 V, 50/60
Hz
|
|
Consumption (W)
|
900
|
1350
|
|
External Size
(W×D×H)(mm)
|
283×343×215
|
283×343×228
|
|
Shipping Size
(W×D×H)
|
500×370×480 mm
|
|
N.W/G.W. (kg)
|
6/10
|
6.7/11
|
