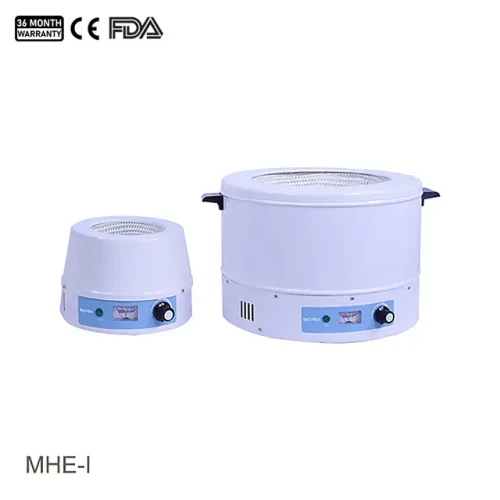

Electronic & Digital Heating Mantle Scitek Global
Features
Ø Heating mantle is the internally heater in hemisphere shape. It
adopts high - temperature resistant alkali-free glass fibre to be the
insulating material and seal up the nichrome resistive conductor within the
insulating layer and braid it.
Ø The case adopts the high quality cold- rolled plate and the
electrostatic plastic spraying treatment on the surface.
Ø Big heating area, speed hyperthermic, uniform temperature, good
heat preservation results and no open fire.
Ø Corrosion- resisting, ageing- resistant, durable, safety and
reliable.
Ø The digital display type has advantages of temperature setting,
automatic temperature control and temperature digital display.
Specification
|
Capacity
(ml)
|
Power
(W)
|
Working Room
(D×H) (mm)
|
Product Size
(D×H) (mm)
|
Net Weight
(kg)
|
|
100
|
180
|
φ70 × 40
|
φ175 × 150
|
1.7
|
|
250
|
180
|
φ95 × 50
|
φ175 × 150
|
1.8
|
|
500
|
250
|
φ115 × 50
|
φ175 × 160
|
1.8
|
|
1000
|
300
|
φ150 × 70
|
φ240 × 175
|
2.6
|
|
2000
|
500
|
φ180 × 80
|
φ280 × 215
|
3.8
|
|
3000
|
500
|
φ200 × 100
|
φ289 × 240
|
4.2
|
|
5000
|
1000
|
φ245 × 150
|
φ354 × 270
|
7.0
|
|
10000
|
1500
|
φ310 × 175
|
φ414 × 310
|
10.2
|
|
20000
|
2500
|
φ380 × 190
|
φ489 × 285
|
13.3
|
|
50000
|
6000
|
φ488 × 270
|
φ690 × 475
|
54.0
|
Common Operating Features
• Working Time:
Continuous operation
• Max Working Temperature: 380°C (Heating element)
• Power Supply: AC 220V/110V; 50/60Hz
