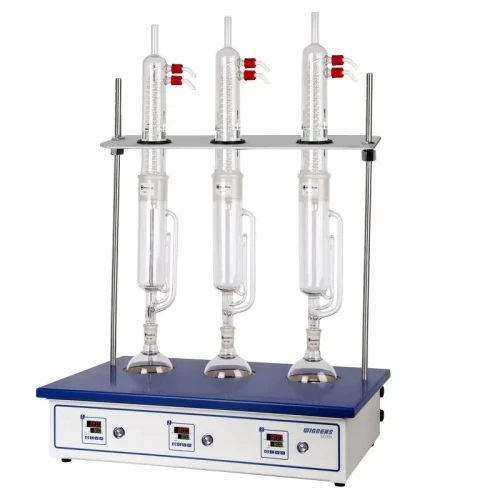

Extraction System of Soxhlet (SES)Temperature range：Rt. +5~450℃ Model: SES395 Wiggens Germany

Wiggens Soxhlet Extraction System is based on the Soxhlet extraction principle and integrates such functions as soaking, extraction, leaching, heating, condensation and solvent recovery. It features sealed metal bath heating with automatic temperature control, ensuring uniform heating and safe operation; six samples can be tested at the same time, and optimal temperature can be selected according to the difference between reagent boiling point and RT. so as to achieve quick analysis; reagents can also be recycled to reduce test cost; and soaking, extraction and solvent recovery can be done in one step. Therefore, this device is characterized by reasonable design, stable performance, good reproducibility, high accuracy, easy operation, saving time and effort, and so on.

SES can quickly separate one substance from solid or semi-solid mixtures, can determine the soluble organic compounds contained in foods, feeds, medicines, soil, sludge, polymers, fiber products, petrochemical products, detergent, rubbers, plastics and other materials.

LED display
The set temperature and actual temperature can be displayed simultaneously

Extremely high temperature
Temperature can reach up to 450℃ Display resolution is 0.1

Independent temperature control
According to the experimental requirements, different position can be run at the same or different temperature

Glassware
Both round and flat bottom flasks can be ordered with 300ml and 500ml volume

Cellulose fiber extraction thimbles
Optional, good retention. seamless, high quality extraction thimbles, single thickness. Readily permeable to the flow of ether and other organic solvents.

Specifications
