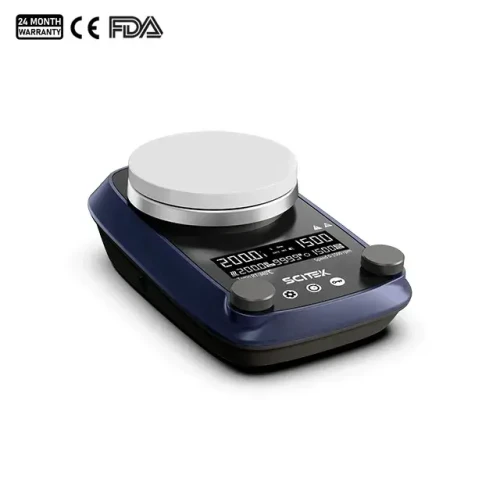

LCD Digital Magnetic Stirrer Scitek Global
Features
ü LCD screen intuitively
displays speed, time, and temperature (set value + real-time value).
ü Supports remote computer
control, with preset safe temperatures, suitable for batch operations and
unattended operation in laboratories.
ü Three heating modes: rapid,
standard, and stable, flexibly matching the heating needs of different
experiments, balancing efficiency and accuracy.
ü Dual-sided, dual-form
design, precisely matched to your experimental needs. Square glass-ceramic vs.
round ceramic-coated aluminum -you can flexibly choose based on four
dimensions: container type, work surface layout, heating efficiency, and
chemical resistance.
ü Brushless motor+precise PID
temperature control: stable operation, suitable for temperature-sensitive
experiments, ensuring accurate and repeatable experimental data.
ü High-efficiency infusion
platform and waterproof edge design prevent liquid seepage into the machine
body, avoid corrosion of electronic components, and reduce equipment
maintenance costs.
ü High-temperature resistant,
strong magnet provides ample stirring power, easily handling viscous liquids
and adaptable to various experimental needs.
ü Safety lock prevents
accidental operation; dual independent safety circuits provide overheat
protection, sensor malfunction warnings and automatic power-off in case of
short circuit.
Specification
|
Specification Parameter
|
HMS4-550
|
MS-DS4
|
|
Stirring Positions
|
1
|
1
|
|
Speed Range
|
50–1500 rpm
|
50–1500 rpm
|
|
Max. Stirring Volume (H₂O)
|
10 L
|
10 L
|
|
Max. Magnetic Bar Length
|
40 mm
|
40 mm
|
|
Work Plate Dimension
|
100×100 mm (4")
|
100×100 mm (4")
|
|
Work Plate Material
|
Glass Ceramic
|
Glass Ceramic
|
|
Heating Temp. Range
|
RT to 550 ℃
|
No Heating (-)
|
|
Overheating Protection
|
580 ℃
|
-
|
|
Temp. Control Accuracy
|
±1 ℃ (<100℃), ±1% (>100℃)
|
-
|
|
Power Consumption
|
460 W
|
30 W
|
|
Heating Output Power
|
410 W
|
-
|
|
External Size (W×D×H)
|
270×175×108 mm
|
270×175×108 mm
|
|
Net / Gross Weight
|
2.2 / 4.0 kg
|
1.8 / 4.0 kg
|
