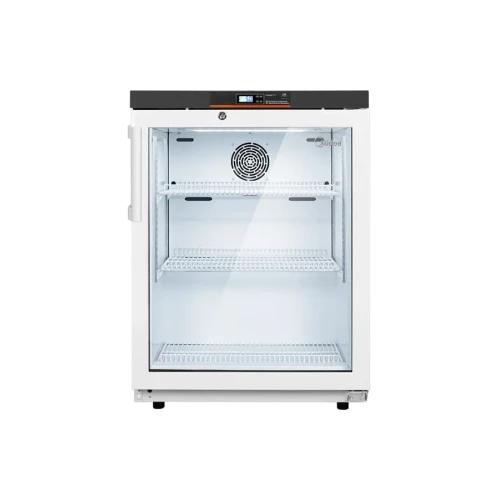

Midea MC-5L126 126L Under Counter Compact Vaccine Storage Refrigerator MC-5L126 2°C to -8°C Media Biomedical
Features:
·
126L capacity designed for compact under-counter installation.
·
2°C to 8°C
temperature range for vaccine, medicine, and
pharmaceutical storage.
·
0.1°C digital
temperature accuracy with microprocessor control.
·
Patented forced-air cooling
system maintains approximately ±1°C uniformity throughout the
cabinet.
·
Hermetic
compressor with auto-defrost for reliable
operation.
·
8-point
failure detection with alarms for temperature,
ambient conditions, door, power, battery, sensor, and communication failures.
·
Built-in
battery backup maintains the real-time temperature
display during power outages.
·
Mechanical
lock for secure storage of regulated
materials.
·
Optional RS485 connectivity
for facility/management systems.
·
Electrically
heated Low-E glass door helps
prevent condensation and provides clear visibility.
·
Self-sealing
door mechanism.
·
25 mm probe
port for external temperature
monitoring.
·
USB data
export for temperature/alarm records.
·
R600a
refrigerant and CFC-free insulation.
·
Certifications include CE, UL,
ENERGY STAR, and NSF 456; DIN 13277 is listed as an optional certification.
|
Specification
|
Details
|
|
Model
|
MC-5L126
|
|
Product
Type
|
Under Counter Vaccine Storage Refrigerator
|
|
Capacity
|
126L
|
|
Temperature
Range
|
2°C to 8°C
|
|
Temperature
Accuracy
|
0.1°C digital accuracy
|
|
Temperature
Uniformity
|
±1°C
|
|
Cooling
System
|
Forced-air circulation
|
|
Compressor
|
Hermetic compressor
|
|
Defrost
|
Auto-defrost
|
|
Refrigerant
|
R600a
|
|
Door
Type
|
Electrically heated
Low-E glass door
|
|
Door
|
Self-sealing
|
|
Lock
|
Mechanical lock
|
|
Power
Supply
|
115V/60Hz; 220–240V/50Hz; 220–240V/60Hz
|
|
Operating
Power
|
160W / 100W / 120W
|
|
Electrical
Current @ 220V
|
2A / 1A / 1A
|
|
Net
Weight
|
43 kg
|
|
Gross
Weight
|
48 kg
|
|
Probe
Port
|
25 mm
|
|
Data
Export
|
USB
|
|
Communication
|
Optional RS485
|
|
Certifications
|
CE, UL, ENERGY STAR, NSF 456
|
|
Container
Loading
|
48 / 102 / 102 units
(20' / 40' / 40'H)
|
