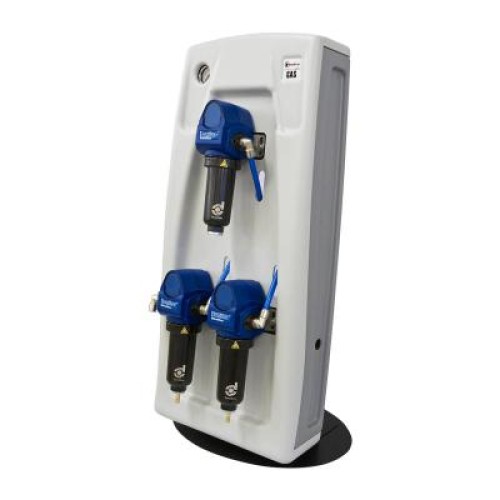

MINI WHISPER NITROGEN GENERATOR Flow L/min 12 Purity 99% @ 12 L/min Model: MINI WHISPER Wiggens Germany
MINI WHISPER NITROGEN GENERATOR Flow L/min 12 Purity 99% @ 12 L/min Model: MINI WHISPER Wiggens Germany

MINI WHISPER NITROGEN GENERATOR Flow L/min 12 Purity 99% @ 12 L/min Model: MINI WHISPER Wiggens Germany

0 Customer Review
Highlights
  • Flow L/min 12
  • Purity 99% @ 12 L/min
  • 99% @ 10 L/min
  • Dewpoint -50 ºC
  • Outlet pressure barg (psig) 7 (100)
  • Inlet pressure barg (psig) 8.5 to 10 (123 to 160)
  • Actual inlet air requirement liters 60
  • Recommended compressor air inlet 120
  • Pressure drop barg (psig) 1.5 (22)
  • Inlet air quality Clean dry compressed air ISO8573-1:2010 Class 1.2.1
  • Technology Membrane
View More Info
Call For Price

MINI WHISPER NITROGEN GENERATOR Flow L/min 12 Purity 99% @ 12 L/min Model: MINI WHISPER Wiggens Germany


ANALYZERS

> Thermal analyzers (TGA/DSC)


OTHER APPLICATIONS

> Sample concentrators

> Evaporative light scattering detector (ELSD)

> Corona detectors

> Charged aerosol (CAD)

> Sample evaporators

> Cell incubators

> IVF Stem Cell incubators

> Mask aligner

> Fume hood/cabinet purge

> 3D printer inerting

> Glove box purge


OPERATING DIAGRAM
Membrane separation technique:
Compressed air is forced through a hollow fiber membrane, with selective permeation of the different components - nitrogen, oxygen, carbon dioxide, water vapor and traces
of rare gases - depending on the rate of diffusion.

The rate of diffusion of nitrogen through the membrane is slower than the other components, which thus flow outside of the fiber membrane. Just nitrogen remains inside which is then subsequently discharged, ready for use.

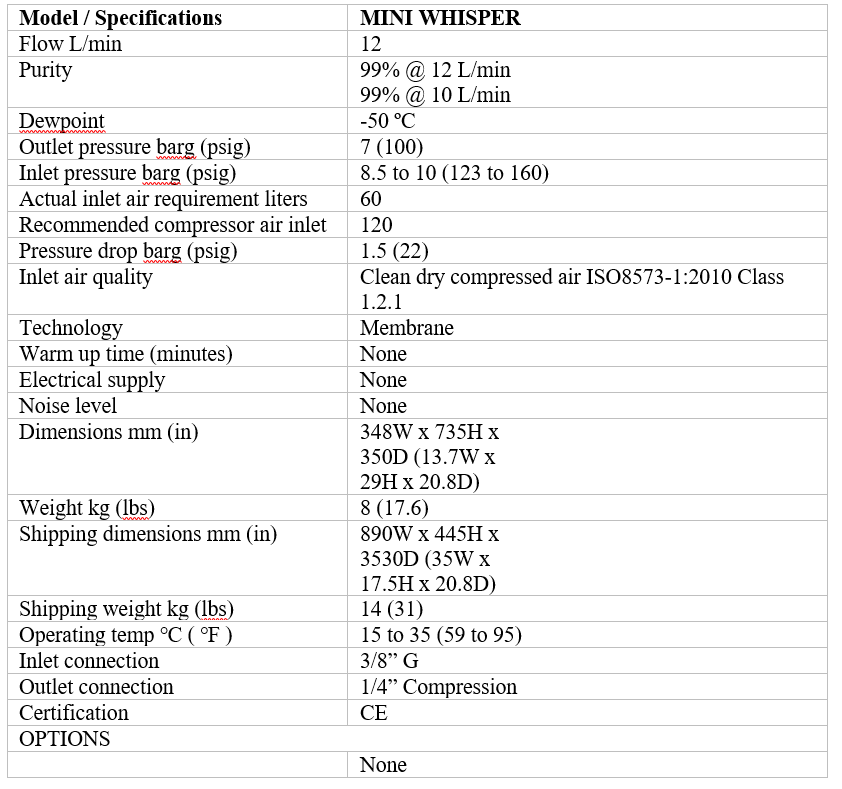

Specifications
