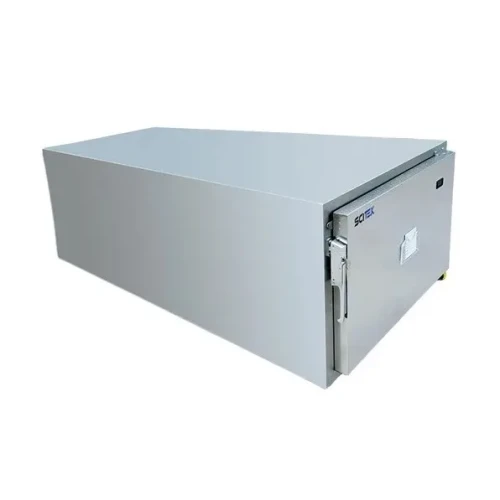

Mobile Mortuary Freezer Scitek Global
Featurtes
1.
Polyurethane foam insulation.
2. Each
door equipped with an independent compressor, independent refrigeration system,
and independent control.
3.
Exterior and inner liner is made of stainless steel and utilizes
mortise-and-tenon joint technology. The inner liner features an anti-water-accumulation
recessed bottom design to save space.
4. Door
is made of SUS304 engraved stainless steel, resistant to scratches,
fingerprints, and disinfectant corrosion. Equipped with a
low-temperature/anti-aging constant-temperature heating system around the door
frame.
5. Door
frame equipped with a constant-temperature defrost system (45–50°C) to prevent
condensation, water droplets, or frost formation.
6.
Track features a flared/splayed design (for easy stretcher access) with
stainless steel rollers containing stainless steel bearings throughout.
7.
Stainless steel recessed stretcher with guardrails. Incorporating ergonomic
principles , the design ensures that individuals placed on it are automatically
maintained in a centered position.
8. Requires
a <26°C ambient environment for -30°C operation, pre-calibration for
operation temperature is available upon request.
Specification
|
Parameter
|
Specification
|
CR-1P
|
CR-2P
|
CR-3P
|
|
Capacity (Body)
|
-
|
1
|
2
|
3
|
|
Compressor
|
-
|
1
|
2
|
3
|
|
Size (W×D×H) (mm)
|
External
|
2500×835×640
|
2188×860×1570
|
2188×860×2000
|
|
|
Corpse Tray
|
1950×590×50
|
1950×590×50
|
1950×590×50
|
|
Electricity
|
Power Supply
|
220/110
V, 50/60 Hz
|
220/110
V, 50/60 Hz
|
220/110
V, 50/60 Hz
|
|
|
Power (W)
|
850
|
1300
|
1500
|
|
Temperature
|
Preset
|
-18 ℃
|
-18 ℃
|
-18 ℃
|
|
|
Range
|
-30 ℃ to
-15 ℃
|
-30 ℃ to
-15 ℃
|
-30 ℃ to
-15 ℃
|
|
|
Accuracy
|
0.1°C
|
0.1°C
|
0.1°C
|
|
Shipping Size (mm)
|
-
|
2700×800×700
|
2300×950×1700
|
2300×960×2200
|
|
N.W./G.W. (kg)
|
-
|
95/200
|
210/400
|
260/500
|
