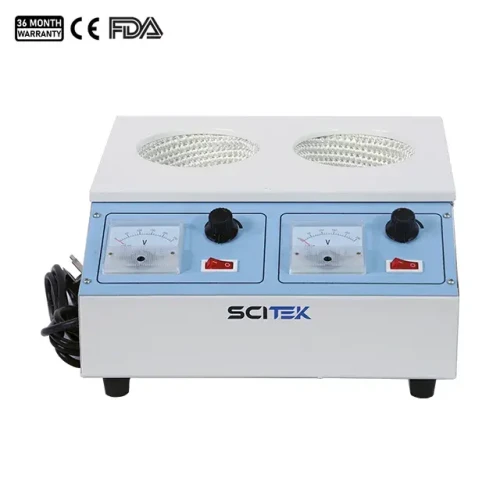

Multi-row Electronic Control Heating Mantle Scitek Global

0 Customer Review

Availability: Call For Price
Brand: Scitek Global

Highlights

Capacity : 100, 250, 500, 1000, 2000 mL
Surface Max. Temp. : 380 ℃
Timer : 0–999 mins (for MHD-III)
It is the ideal product for heating the liquid in laboratories of the fields of medicine, petroleum, chemical industry and environmental protection etc.

View More Info

Call For Price

Product Details
Review & Comments

Multi-row Electronic Control Heating Mantle Scitek Global

Capacity : 100, 250, 500, 1000, 2000 mL

Surface Max. Temp. : 380 ℃

Timer : 0–999 mins (for MHD-III)

It is the ideal product for heating the liquid in laboratories of the fields of medicine, petroleum, chemical industry and environmental protection etc.

Common Specifications for All Models:
• Working Time: Continuous operation
• Max Working Temperature: 380°C (Heating component surface temperature)
• Power Supply: AC 220/110V; 50/60Hz

MHE-S / MHD-S Multi-Row Heating Mantle Specifications

Rows	Capacity (ml)	Power (W)	Working Room (D×H) (mm)	Product Size (D×H) (mm)	Net Weight (kg)
Two Rows	100	360	φ70×40	280×290×150	4.0
Two Rows	250	360	φ95×50	280×290×150	4.0
Two Rows	500	500	φ115×50	280×290×150	5.0
Two Rows	1000	600	φ150×70	390×355×150	7.0
Four Rows	100	720	φ70×40	550×290×150	8.0
Four Rows	250	720	φ95×50	550×290×150	8.0
Four Rows	500	1000	φ115×50	550×290×150	10.0
Four Rows	1000	1200	φ150×70	780×350×150	14.0
Six Rows	100	1080	φ70×40	830×295×150	12.0
Six Rows	250	1080	φ95×50	832×290×150	13.0
Six Rows	500	1500	φ115×50	832×290×150
