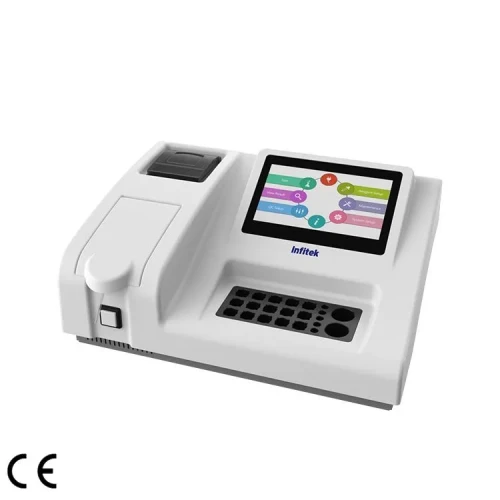

Semi-Auto Biochemistry Analyzer 32µL 10mm BA-SA-100C infitek USA
- 7″ inch true color touch
screen(800*480 pixels)
- 5 USB ports & 1 ethernet port
- Flash: 256 MB;Over 300 programs, 200000 results can be stored.
- Resolution: 0.0001 Abs.
- Photometric range: 0.0000-4.0000 Abs
Semi-Auto Biochemistry
Analyzer is suitable for the analysis of serum, plasma, urine and other body
fluid samples, and can complete the test of biochemical, special protein, drug
monitoring and blood coagulation items
- Flow cell & cuvette
testing mode
- Huge storage of more than 300 programs & 200000 sample results
- Blood coagulation function:
The instrument can perform blood coagulation routine tests: PT，APTT, TT and can measure blood coagulation time.
7″ inch true color touch
screen(800*480 pixels)
5 USB ports & 1 ethernet port
Mouse, keyboard and printer
can be connected freely, easy transmission of LIS data.
Multifunctional Incubator
With Accurate Constant Temperature
Multifunctional incubator
specially designed for chemistry and coagulation tests, different holes can be
used to put sampe tubes, chemistry cuvettes, coagulation cuvettes, accurate
temperature control, more efficient sample incubation
Windows embedded compact 7 smart operation system
More convenient to edit test
items freely, clear presentation of real-time curve, calibration, quality
control and sample results.
Specification:
|
Model
|
BA-SA-100C
|
|
Test method
|
1 point end, 2 point end(Sample blank),
Kinetics, Fixed-time, Coagulation.
|
|
Optics
|
7 standard filters: 340nm, 405nm,
450nm, 505nm, 546nm, 578nm, 630nm. 2 more for optional.
|
|
Lamp house
|
Long-life tungsten halogen lamp(6V/10W),
auto-sleep function.
|
|
Display
|
7.0″ TFT LCD with touch screen, 800*480
pixels.
|
|
Printer
|
Build-in thermal printer, 57mm printer
paper.
|
|
Temperature
|
25,30, 37°C and Room temperature. By
means of Peltier elements.
|
|
Flow cell capacity & optical path
|
32µL, 10mm
|
|
Resolution
|
0.0001 Abs.
|
|
Photometric range
|
0.0000-4.0000 Abs.
|
|
CPU
|
ARM Cortex-A8, 720M Hz.
|
|
Memory
|
DDR2 SDRAM: 1G bit;
|
|
Flash
|
256 MB; Over 300 programs, 200000 results
can be stored.
|
|
Interface
|
4 USB Hosts, 1 USB Slave, 1 Ethernet
port. USB port(host) for keyboard, mouse, printer, U disk, bar code reader
etc. USB port(slave) for PC connection(support PC software control function).
|
|
Operational environment
|
Temperature: 10°C~30°C, Humidity: 30%~80%
|
|
Power requirement
|
Wide power supply AC 100-240V, 50/60 Hz
|
|
Dimension
|
400*300*160mm(L*W*H)
|
|
Language
|
Russian、English、Portuguese、Spanish、Chinese
|
