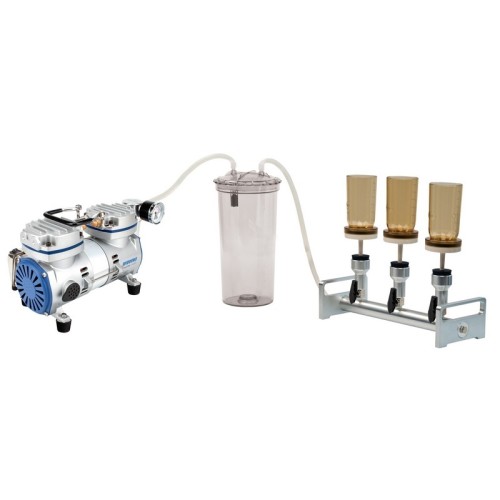

Stainless Steel Multi-Position Filtration System Ultimate Vacuum(mbar):150 Model:BioVac320A Wiggens Price in Bangladesh

Stainless Steel Multi-Position Filtration System Ultimate Vacuum(mbar):150 Model:BioVac320A Wiggens Germany

0 Customer Review

Availability: Call For Price
Brand: Weggens Germany

Highlights

Max. Flow Rate (L/min) 34
Ultimate Vacuum(mbar) 150
Waste Bottle (Capacity in mL/ Material) 3000 , PC
Number of Branches 3
Manifold Material Stainless Steel
Filter Diameter (mm) 47/50
Filter Cup (Capacity in mL/ Material) 300 Magnetic
Effective Filtration Area (cm2) 9.6
Tube I.D. (mm) 8

View More Info

Call For Price

Product Details
Review & Comments

Stainless Steel Multi-Position Filtration System Ultimate Vacuum(mbar):150 Model:BioVac320A Wiggens Germany

Features
The manifold is made of SS316
All parts of a manifold are made of SS316 which are excellent chemical resistant and can be fast sterilized by autoclaving.

The spin-lock design
The manifold uses a spin-lock connection which facilitates fast and stable installation without clamps.

Individual control valve
Each branch permits individual control.

Compatible to different sizes of funnels
manifolds are available to fit 100, 300, 500mL funnel at your option.

Magnetic filter set is included
Magnetic filter set allows one-handed operation, and prevents possible twisting and tearing of the membrane.

Application
> Biological laboratories
> Chemical industry
> Microbiological detection
> All kinds of liquid filtration

Specifications

Model	BioVac320A
Max. Flow Rate (L/min)	34
Ultimate Vacuum(mbar)	150
Waste Bottle (Capacity in mL/ Material)	3000 , PC
Number of Branches	3
Manifold Material	Stainless Steel
Filter Diameter (mm)	47/50
Filter Cup (Capacity in mL/ Material)	300 Magnetic
Effective Filtration Area (cm2)	9.6
Tube I.D. (mm)	8

configuration

	Model	Order No.
	BioVac320A	167405
Contains
Pump	V400	167400
Manifold	BioVac320 3-branch	167110-23
Manifold	Stainless steel	167110-23
Filter Cups	3 x 100 mL	167100-18
Filter Cups	PES (magnetic base)	167100-18
Waste Bottle	3000 mL / PC	167200-33
Bunsen Burner	Without	Without
Filter Membranes	Pall GN-6 MCE *	167100-52
Silicon Tube	2 x 1m	168021-01
