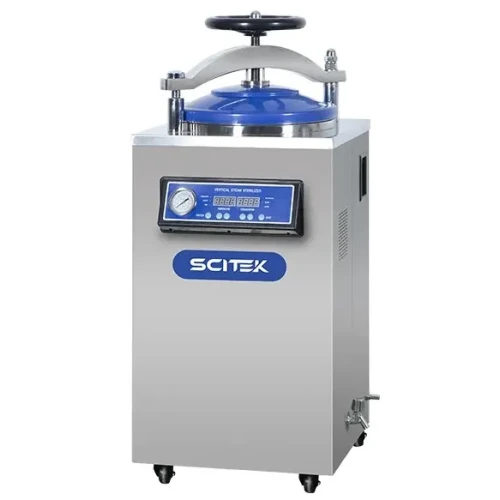

Vertical Pressure Steam Sterilizer, Self-control Drying
Features
1.
Hand wheel translation and quick
opening structure
2.
High quality stainless steel material
3.
Microcomputer automatic control,
arbitrary setting sterilization parameters.
4.
Safety interlocking device
5.
Digital display and Touch buttons
6.
Standard test interface
7.
Self-expanding seal
8.
With automatic protection function:
Over temperature protection; over pressure self discharge protection, low water
level protection; anti dry burning.
9.
With stainless steel bucket or basket
10.
Buzzer reminder after sterilization,
automatic stop
11.
Automatic discharge of cold air,
automatic steam exhaust after sterilization.
Specification:
|
Model
|
ST-VB35
|
ST-VB50
|
ST-VB75
|
ST-VB100
|
|
Volume / Power
|
35L / 3.5kW
|
50L / 3.5kW
|
75L / 4.5kW
|
100L / 4.5kW
|
|
Voltage & Supply
|
AC 220V, 50Hz
|
|
Pressure (Design / Rated)
|
Design: 0.25MPa | Rated
Working: 0.22MPa
|
|
Temperature Info
|
Design: 139℃ | Rated: 134℃
| Range: 116℃~134℃
|
|
Sterilization Time Range
|
4 ~ 120 min
|
|
Chamber Volume
|
Ø300x450
|
Ø350x515
|
Ø400x585
|
Ø450x615
|
|
Bucket Size
|
Ø275x395
|
Ø325x235x2
|
Ø375x265x2
|
Ø425x275x2
|
|
Basket Size
|
Ø270x380
|
Ø320x220x2
|
Ø370x250x2
|
Ø420x265x2
|
|
Outer / Packing Size
|
Outer: 476x473x990
Pack: 580x630x1130
|
Outer: 544x536x1100
Pack: 580x630x1230
|
Outer: 586x576x1210
Pack: 630x680x1290
|
Outer: 620x610x1275
Pack: 690x650x1410
|
|
Weight (Net / Gross)
|
58kg / 79kg
|
80kg / 106kg
|
90kg / 120kg
|
106kg / 133kg
|
