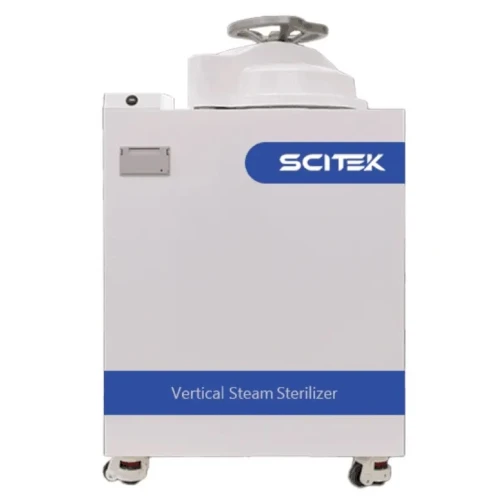

Vertical Pressure Steam Sterilizer Scitek Global
The vertical pressure steam sterilizer represents a secure and dependable sterilization apparatus, characterized by an automatic control system, heating system, and integrated safety features such as automatic overheating, overpressure protection, and a microcomputer control system. This sterilization equipment offers reliable sterilization outcomes, user-friendly operation, safety assurance, energy efficiency, durability, and cost-effectiveness. It is well-suited for diverse applications in pharmaceuticals, medical fields, scientific research, and other industries, providing effective sterilization for equipment, medical dressings, utensils, liquids, culture media, and waste materials.
Features
1.
The inner liner is made of
high-quality stainless steel and is equipped with a metal power switch, metal
handwheel, and good corrosion resistance.
2.
Several safety protection functions
include:
Built-in water tank.
Water cut-off protection control.
Safety interlock device.
Over-temperature.
Overpressure double automatic
protection function.
Ensure safer personnel and more
accurate data during operation.
3.
A 5-inch color touch screen makes
setting parameters and viewing data easier.
4.
USB communication socket, built-in
mobile probe (applicable to various program modes such as open liquid, culture
medium, etc.)
5.
Automatic water replenishment during
the operation, realizing the internal circulation of steam and water. The
internal circulation system of steam and water is equipped with an exhaust
cooling system, which can avoid the generation of aerosols and does not emit
steam to the outside, so the environment is clean and dry.
6.
Optional drying system and printer
Specification:
|
Parameter /
Specification
|
ST-VLA50 (Series 1)
|
ST-VX50 (Series 2)
|
ST-VPA50 (Series 3)
|
|
Chamber Size (ØxH)
/ Volume
|
Ø386x515
|
Ø350x515
|
Ø386×515
|
|
Capacity / Volume
(L)
|
60L
|
50L
|
60L
|
|
Power / Consumption
|
4.6 VA
|
3.5 kW
|
4.6 VA
|
|
Voltage
|
AC 220V, 50Hz*
|
AC 220V, 50Hz
|
AC 220V, 50Hz*
|
|
Sterilization
Temperature
|
121℃ - 134℃
|
116℃ ~ 134℃
|
121℃ ~ 134℃
|
|
Design Pressure
|
0.28 ~ 0.3 MPa
|
0.25 MPa
|
0.28 ~ 0.3 MPa
|
|
Highest / Rated
Working Pressure
|
0.25 MPa
|
0.22 MPa
|
0.25 MPa
|
|
Temperature
Accuracy
|
0.5℃
|
±0.5℃*
|
0.5℃
|
|
Outer / External
Size (mm)
|
Standard Vertical*
|
500x675x1100
|
560×640×990
|
|
Gross Weight (G.W.)
|
120kg*
|
130kg
|
130kg
|
