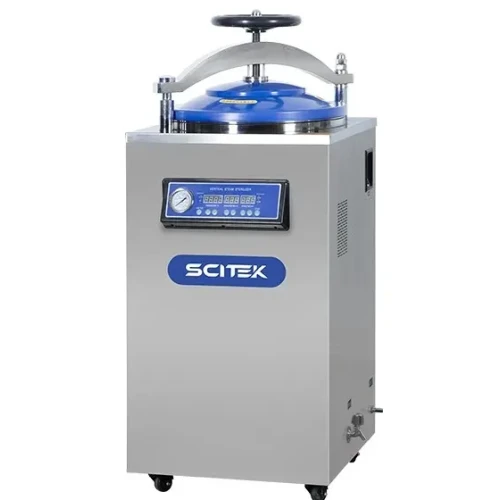

Vertical Pressure Steam Sterilizer, Self-control Drying
Features
1.
Hand wheel translation and quick
opening structure
2.
High quality stainless steel material
3.
Microcomputer automatic control,
arbitrary setting sterilization parameters.
4.
Safety interlocking device
5.
Digital display and Touch buttons
6.
Standard test interface
7.
Self-expanding seal
8.
With drying function
9.
With automatic protection function:
Over temperature protection; over pressure protection; low water level
protection; anti dry burning.
10.
With stainless steel bucket or basket
11.
Buzzer reminder after sterilization,
automatic stop 5s
Automatic discharge of cold air, automatic steam
exhaust after sterilization
Specification:
|
Parameter / Model
|
ST-VG35
|
ST-VG50I
|
ST-VG75
|
ST-VG100I
|
|
Volume & Power
|
35L / 3.5kW
|
50L / 3.5kW
|
75L / 4.5kW
|
100L / 4.5kW
|
|
Voltage & Pressure
|
AC
220V, 50HZ | Design Press: 0.25MPa |
Rated Press: 0.22MPa
|
|
|
|
|
Temperature Parameters
|
Design Temp: 139℃
| Rated Working Temp: 134℃ |
Range: 116℃~134℃
|
|
|
|
|
Time Settings (Steril./Drying)
|
Sterilization:
4~120min | Drying Time: 0~240min
|
|
|
|
|
Chamber / Bucket Size (ØxH)
|
Chamber: Ø300x450
Bucket: Ø275x395
|
Chamber: Ø350x525
Bucket: Ø325x235x2
|
Chamber: Ø400x625
Bucket: Ø375x265x2
|
Chamber: Ø450x650
Bucket: Ø425x275x2
|
|
Basket Size (ØxH)
|
Ø270x380
|
Ø320x220x2
|
Ø370x250x2
|
Ø420x265x2
|
|
Dimensions (Ext. / Packing)
|
Ext: 476x473x990
Pack: 580x630x1130
|
Ext: 544x536x1100
Pack: 580x630x1230
|
Ext: 586x576x1210
Pack: 630x680x1290
|
Ext: 620x610x1275
Pack: 690x650x1410
|
|
Weight (Net / Gross)
|
58kg
/ 79kg
|
80kg
/ 106kg
|
90kg
/ 120kg
|
106kg
/ 133kg
|
