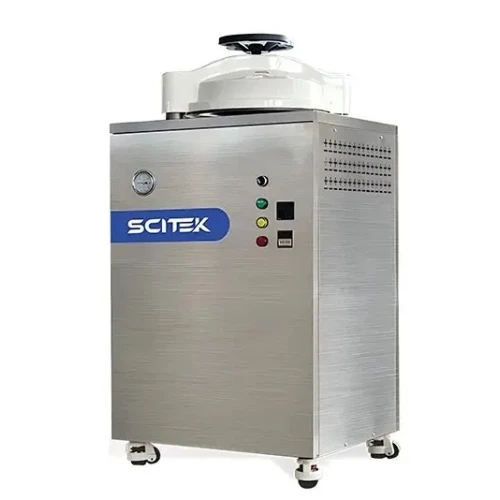

Vertical Pressure Steam Sterilizer, ST-VLA Series Scitek Global
The vertical pressure steam
sterilizer is a safe, reliable and automatically controlled sterilization
equipment, consisting of a heating system, a microcomputer control system, an
automatic overheating and an overheating and overpressure protection system.
The container has the advantages of reliable sterilization effect, easy
operation, safe use, energy saving, durability and low price. It is suitable
for pharmaceutical, medical, scientific research and other industries to
sterilize equipment, medical dressings, utensils, liquids, culture media, waste
and other items.
Features
1.
Inner tank made of high-quality
stainless steel
2.
Several safety protection functions
include:
Water cutoff protection control
Safety interlocking device.
Over-temperature, over-pressure
automatic protection function
3.
Self-expanding seal
4.
Hand wheel translation quick opening
structure
5.
Buzzer reminds automatic shutdown
after sterilization is completed
6.
Knob control, time relay, temperature
controller
7.
Standard double-layer stainless steel
mesh basket
8.
Optional drying system, gas
collecting bucket, etc.
9.
Automatically discharges cold air and
automatically discharges steam after sterilization is completed
10.
Simple operation, safe and reliable,
purely mechanical control, low failure rate
Specification:
|
Model
|
Chamber Size (ØxH)
|
Capacity (L)
|
Consumption
|
Temperature
|
Highest Working Pressure
|
Temp. Accuracy
|
Design Pressure
|
|
ST-VLA50
|
Ø386x515
|
60
|
4.6VA
|
121℃-134℃
|
0.25Mpa
|
0.5℃
|
0.28~0.3Mpa
|
|
ST-VLA80
|
Ø386x695
|
80
|
6.1VA
|
121℃-134℃
|
0.25Mpa
|
0.5℃
|
0.28~0.3Mpa
|
|
ST-VLA100
|
Ø386x875
|
100
|
7.3VA
|
121℃-134℃
|
0.25Mpa
|
0.5℃
|
0.28~0.3Mpa
|
|
ST-VL50
|
Ø386x515
|
60
|
3.6VA
|
121℃-134℃
|
0.25Mpa
|
0.5℃
|
0.28~0.3Mpa
|
|
ST-VL80I
|
Ø386x695
|
80
|
5.1VA
|
121℃-134℃
|
0.25Mpa
|
0.5℃
|
0.28~0.3Mpa
|
|
ST-VL100
|
Ø386x875
|
100
|
6.1VA
|
121℃-134℃
|
0.25Mpa
|
0.5℃
|
0.28~0.3Mpa
|
|
ST-VL120
|
Ø386x1054
|
120
|
6.1VA
|
121℃-134℃
|
0.25Mpa
|
0.5℃
|
0.28~0.3Mpa
|
