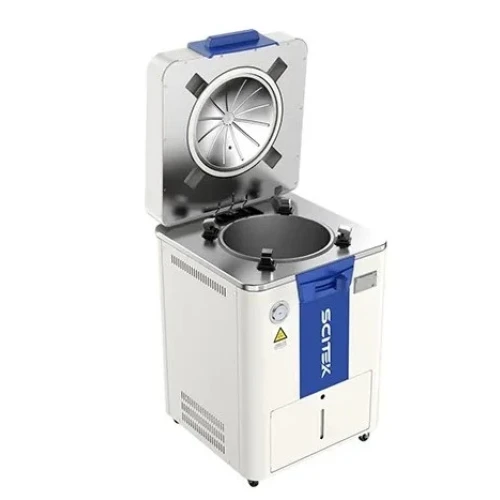

Vertical Top-loading Autoclave Scitek Global
This sterilizer uses saturated
steam as the sterilization medium. By venting cold air under gravity, the
saturated steam completely penetrates the surface of the items, killing all
microorganisms and their spores under high pressure. The sterilization effect
is reliable and is the most effective method among physical sterilization
methods. It is widely used in the medical industry, medicine, biochemistry,
agricultural science, laboratories, and universities for sterilizing rubber,
dressings, liquids, instruments, and other items. It is suitable for medical
and health institutions, scientific research institutions, university
laboratories, hospitals at all levels, disease control centers, and inspection
and quarantine agencies.
Features
1.
Top flip-top door structure.
2.
The use of multi-point evenly distributed synchronous linkage
pressing technology makes the door seal more reliable.
3.
The 7-inch true-color touchscreen can simultaneously display:
sterilization temperature, time, mode, door status, running progress status,
graphs, and alarm status.
4.
10 standard programs and 2 custom programs with a total of 200
storable programs (Program names and parameters can be set according to the
user's sterilization needs). The instrument can be managed in three levels:
operator, administrator, and senior management.
5.
Each sterilization program can be scheduled to run automatically
at a preset time.
6.
It can store 20,000 sterilization records, view historical data,
and export data to a USB drive.
7.
Built-in F0 value calculation function.
8.
Equipped with a high-powered cooling fan to accelerate chamber
temperature decrease during the cooling phase.
Specification:
|
Model
|
ST-V60F
|
ST-V85F
|
ST-V100F
|
|
Capacity (L)
|
60
|
85
|
100
|
|
Design
Pressure
|
0.35
MPa
|
|
Maximum Operating Pressure
|
0.27 MPa
|
|
Temperature
Display Resolution
|
0.1
℃
|
|
Design Temperature
|
150 ℃
|
|
Sterilization
Temp. Range
|
105–138
℃
|
|
Dissolution Temp. Range
|
60–100 ℃
|
|
Unlocking
Temperature
|
40–99
℃
|
|
Sterilization & Melting Time Range
|
1–6000 min
|
|
Verification
Interface
|
Temperature
Verification Port (G1A) and Pressure Verification Port (G1/2A)
|
|
Exhaust Method
|
Built-in condenser and water collection tank,
fully automatic internal drainage
|
|
Power
Supply
|
110/220
V, 50/60 Hz
|
|
Power (W)
|
3200
|
|
Chamber
Size (Dia×H) (mm)
|
Ø405×506
|
Ø405×706
|
Ø405×831
|
|
External Size (W×D×H) (mm)
|
590×695×865
|
590×695×1030
|
590×695×1155
|
|
Shipping
Size (W×D×H) (mm)
|
770×830×1035
|
770×830×1200
|
770×830×1310
|
|
N.W / G.W. (kg)
|
100/130
|
110/140
|
120/150
|
|
Safety
Function (Standard)
|
Sensor
anomaly alarm, heater burnout alarm, mechanical safety valve, electronic pressure
protection, pressure lock protection, door safety interlock protection,
electromagnetic lock protection, over-temperature and temperature raise
protection, earth leakage protection, overcurrent and short-circuit
protection, dry heating protection, anti-scalding safety protection, water
level sensor monitoring, lid closure check, cooling lock, automatic fault
detection system
|
|
Optional
|
Printer, pressure display, preheat function,
automatic water fill, automatic drying, one-touch automatic drain, mobile
temperature probe
|
