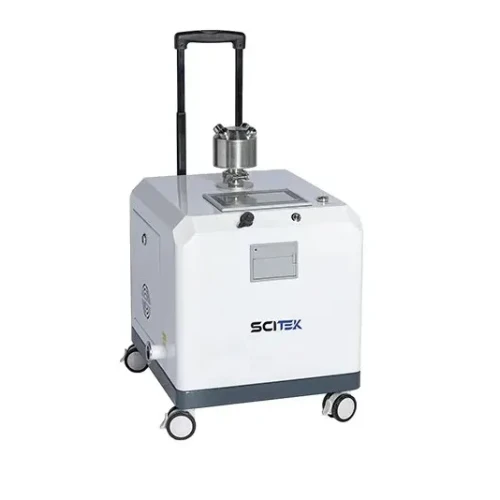

VHPS-Basic Hydrogen Peroxide Disinfector
Employing new-generation
high-temperate flash vaporization technology, Suitable for BIBO
(Bag-In/Bag-Out) protection system /facility, isolators, pass-through
chamber/pass box, sealed chambers, pipeline, IVC cage, workshop and
production floor sterilization.
Features
1. New-generation flash
vaporization technology, achieving disinfection of both object surfaces and
air.
2. Portable design for easy mobility, equipped with casters for
easy relocation.
3. 7-inch touchscreen supports delayed startup, and the standard
remote control allows for remote operation.
4. Achieves high-efficiency disinfection (Log 6) within 2 hours
using minimal amounts of disinfectant.
5. 4 nozzles to enable omnidirectional, three-dimensional
dispersion of hydrogen peroxide gas.
6. No corrosion to stainless steel equipment, and non-toxic to
operators.
7. Real-time monitoring of disinfectant consumption via Mettler
Toledo load cells.
8. 3-level password management system and an audit trail
function.
9. Built-in printer that can print disinfection and
sterilization parameters as well as historical records.
Specification:
|
Model
|
ST-300MH
|
|
Sterilization
Technology
|
Vaporized
Hydrogen Peroxide Sterilization Technology
|
|
Disinfectant
|
Hydrogen
peroxide solution (30–35%)
|
|
Display
|
7-inch
touch screen
|
|
Vaporization
Temperature
|
≥130 ℃
|
|
Sterilization
Level
|
Log6
|
|
Liquid
Storage Capacity
|
200
mL
|
|
Maximum
Disinfection Volume
|
10–300
m³
|
|
Disinfectant
Dosage
|
1–10
mL/m³, Adjustable
|
|
Particle
Size
|
≤1 μm
|
|
Function
|
USB
data export, 3-level password management, 3-color status light, delay start
|
|
Power
Supply
|
AC
220/110V, 50/60Hz
|
|
Consumption
|
1000
W
|
|
External
Size (W×D×H)
|
480×420×420
mm
|
|
Shipping
Size (W×D×H)
|
680×500×650
mm
|
|
N.W./G.W.
|
26/34
kg
|
