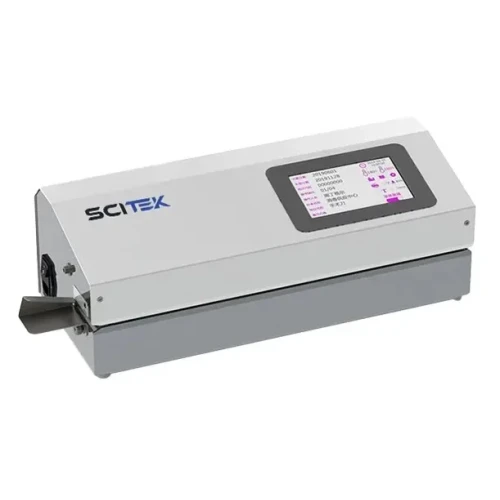

Automatic Sealing Machine, Touch Screen Global

Features

1.      LCD color touch screen, graphical operation interface, Chinese and English display and print switching, keyboard input control, built-in clock and parameters can be set and it has automatic storage function;

2.      With positive sequence (descending sequence) sealing counter; It can realize the statistics of sealing quantity within 0 ~ 9999; It has special functions such as printing margin, printing interval symbol and so on;

3.      With rapid heating and auxiliary cooling design: It equipped with a microcomputer-controlled heating and cooling mechanism to reduce the waiting time for the sealing temperature to quickly change from low to high or from high to low;

4.      Computer intelligent temperature control design; working temperature: 60~220℃ arbitrarily set; temperature control accuracy is less than ±1%; Preset four common temperatures: 60℃, 120℃, 180℃, 220℃; It can realize fast switching according to the daily needs of users, which is convenient for users to quickly select the sealing temperature;

5.      When the sealing temperature exceeds the working temperature setting range of ±4℃, the machine will automatically stop working, effectively ensuring the quality of the sealing and the safe operation of the equipment;

6.      Floating constant pressure pressing structure design is adopted to meet the sealing needs of three-dimensional bags and paper bags of different thicknesses;

7.      Automatic fault alarm indication can realize automatic detection of working process, and various faults can automatically alarm or prompt;

8.      The standby time and standby temperature are adjustable, and the intelligent standby recovery function can make the machine return to the working temperature at a high speed, reducing the waiting time;

9.      Advanced flat-plate ceramic heating components have the characteristics of fast temperature rise, uniform heating, high temperature resistance, long life and high thermal efficiency;

10.  The sealing machine has its own operation identification function, which can realize the printing of test time, sealing temperature, pressure, speed, sealing time, equipment number, etc. in Chinese and English;

Functions of printing system

1.      It has Chinese and English dual operating systems, which can be switched at will. In the Chinese operating state, Chinese characters and symbols can be printed, and in the English operating state, English and symbols can be printed;

2.      Can print Chinese, English, numbers and special characters, sterilization date, expiration date, sterilization batch, sterilizer number, operator code, etc;

3.      Sterilization date and expiration date can be adjusted according to requirements;

4.      The built-in sealing machine has a Chinese and English printing system and built-in 24-pin printer. The printing is clear and the setting of printing items is simple and fast. The width of the printing font is adjustable, which is convenient for printing more content on relatively narrow bags. The printing function can be You can also close an item as needed by pressing the Close key;

5.      The system will give the printing width value based on the selected printing content, automatically calculate the minimum printing bandwidth, help the operator determine the number of items before printing to select the appropriate paper-plastic bag, and realize a reminder before sealing when the width of the paper-plastic bag is insufficient;

Specification:
