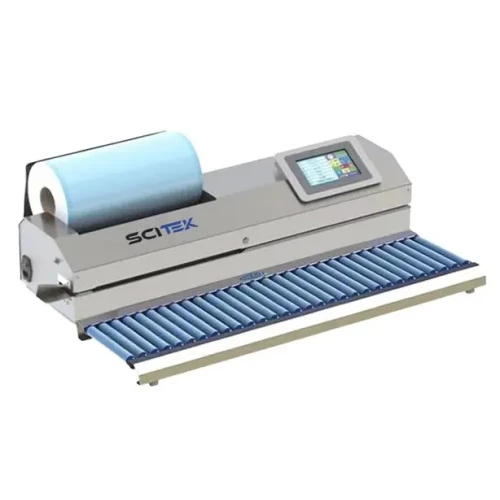

Cutting-Sealing Printing Machine Scitek Global
Features
1. Automatic feeding, cutting and sealing: You only need to set up
the length and quantity of the paper-plastic pouches as per the requirements
and start theprogram, then the machine will automatically complete the feeding,
uttingand sealing process;
2. Touch screen with Android OS, which features in graphical
operation interface, single chip control system, adjustable parameters etings
with English input methods or optional scanning gun, automatic storage with
functions of voice reading, voice prompt and wireless Wifi connection etc.;
3. If necessary, several rolls of paper-plastic puches with
different widths could be loaded into the machine at the same time to improve
its working efficiency by finish cutting and sealing simultaneously;
4. Temperature controlled by a microcomputer: Fast heating and high
temperature control precision;
5. Safe operation: If the sealing temperature and sealing pressure
exceeds setting range ,the machine will automatically stop working, which
effectively guarantees the seal quality and safety.
Specification:
|
Model
|
SM-CSP121
|
|
Max Cutting Width
|
≤400mm
|
|
Max Current(A)
|
3.2
|
|
Fuse
|
5Ax2
|
|
Display
|
7" color
capacitive LCD
|
|
Sealing Speed
|
10+0.5m/min
|
|
Sealing Width
|
12mm
|
|
Cutting Length
|
>50mm
|
|
Cutting Speed
|
20+0.5m/min
|
|
Sealing Margin
|
0~35mm adjustable
|
|
Working
Temperature
|
60~220°C
adjustable
|
|
Temperature
Control Precision
|
≤±1°C
|
|
AC Power
|
According to
customer requirements
|
|
Power(w)
|
600
|
|
Weight(kg)
|
42
|
|
External
Size(WxDxH)(mm)
|
1030x290x200
|
