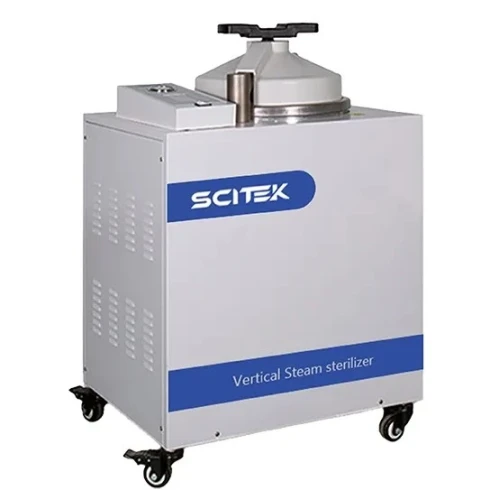

Automatic Vertical Autoclave Scitek Global
This sterilizer uses saturated
steam as the sterilization medium. By venting cold air under gravity, the
saturated steam completely penetrates the surface of the items, killing all
microorganisms and their spores under high pressure. The sterilization effect
is reliable and is the most effective method among physical sterilization
methods. It is widely used in the medical industry, medicine, biochemistry,
agricultural science, laboratories, and universities for sterilizing rubber,
dressings, liquids, instruments, and other items. It is suitable for medical
and health institutions, scientific research institutions, university
laboratories, hospitals at all levels, disease control centers, and inspection
and quarantine agencies.
Features
1.
Overheat protection: Automatically
cutting off heating with audible and visual indication when the autoclave is
overheated.
2.
Anti-burning protection:
Automatically cutting off heating with audible and visual indication when the
autoclave is lack of water.
3.
Interlock safety: Preventing from
starting a cycle if door is not properly closed or from door opening if there
is pressure inside chamber.
4.
Steam pressure safety valve:
Automatically works when the chamber pressure exceeds the limit.
5.
Automatic operation of sterilization
with PID microprocessor control and LCD display.
6.
Positive pulsing function removes the
air efficiently.
7.
Liquid program with automatic
pressure control prevents boil over of liquids and explosions of bottles or
bags.
8.
With Power-off memory function.
9.
Internal water tank with steam-water
internal circulation.
10.
Standard printer, real-time record
sterilization process,error and alarm information.
Specification:
|
Parameter
|
ST-V50A
|
ST-V80A
|
ST-V100A
|
|
Capacity (L)
|
50
|
80
|
100
|
|
Chamber Size (Ø×H,
mm)
|
Ø316×667
|
Ø386×695
|
Ø400×800
|
|
External Size (W×D×H,
mm)
|
476×616×990
|
546×688×1030
|
566×708×1295
|
|
Sterilization Temp. Range
|
105 ~ 136 ℃ (Max: 136℃ / Design: 150℃)
|
|
Pressure (Design/Max)
|
0.3Mpa / 0.23Mpa
|
|
Temp. Accuracy
|
0.1℃
|
|
Display / Drying
|
LCD Touch Screen / YES (15min)
|
|
Power Supply &
Cons.
|
3KW / 220V
|
4.5KW / 220V
|
5.4KW / 220V
|
|
Weight (Net/Gross)
|
68kg / 103kg
|
92kg / 127kg
|
100kg / 140kg
|
