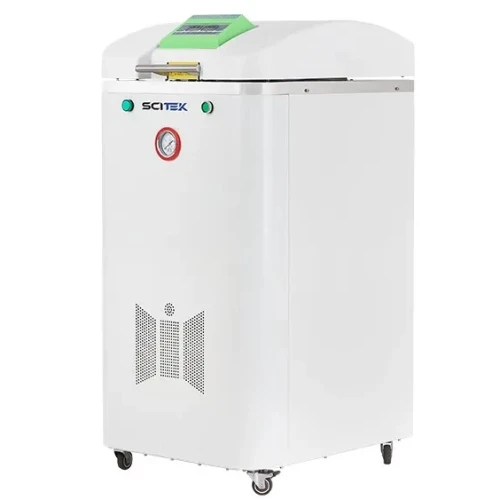

Vertical Pressure Steam Autoclave, ST-VL Series Scitek Global
The vertical
pressure steam autoclave is a safe, reliable, and automatically controlled
sterilization equipment, consisting of a heating system, a microcomputer
control system, and automatic overheating and overpressure protection systems.
It offers reliable sterilization, easy operation, safety, energy efficiency,
durability, and affordability.
Features
1.
Vertical Flip Cover Structure
Easy to open, and automatic locking
upon downward pressure, with lock status determined based on indicator light
prompts.
2.
Electromagnetic suction type 6/8 claw
mechanical interlock.
Electromagnetic suction type 6/8 claw
mechanical interlock, with 6/8 claws installed on the top cover. The sealing
rubber strip is evenly stressed, ensuring a secure and reliable seal. The
operating surface is clean, providing a smooth loading and unloading experience
without any obstacles.
3.
Dovetail type sealing groove
Dovetail type sealing groove,
self-expanding medical grade silicone molded sealing ring, corrosion-resistant
and high-temperature resistant, can prevent accidents caused by
high-temperature opening operations, providing a safer and more secure seal.
4.
Dual air convection rapid cooling fan
Dual air convection rapid cooling
fan, automatically activates after default sterilization for temperature
reduction, adjustable cooling lid opening temperature, lid cannot be opened if
temperature is not reached.
5.
Multi-stage exhaust
Built-in steam collection box,
utilizing multi-stage exhaust, without impacting the surrounding environment.
Safety Features:
1.
Safety interlocking device: Equipped
with a high-temperature and high-pressure interlocking protection system, which
automatically detects and ensures that the chamber cover is closed in place
before the work procedure can be started.
2.
Anti-dry burning alarm: system
automatically stops working when water level is lower than the minimum water
level; system directly cuts off the power supply when the water level is lower
than the heating tube
3.
Over temperature protection ,Over
pressure protection
4.
Electrical safety protection: Leakage,
over current, and short circuit protection functions
Specification:
|
Parameter
|
ST-VL65
|
ST-VL80
|
ST-VL90
|
ST-VL110
|
|
Capacity
|
62L
|
80L
|
88L
|
110L
|
|
Chamber Size (Φ×H)
|
Φ365×484 mm
|
Φ414×484 mm
|
Φ365×734 mm
|
Φ414×734 mm
|
|
External Size (W×L×H)
|
550×640×900
mm
|
550×640×900
mm
|
550×640×1150
mm
|
550×640×1150
mm
|
|
Package Size (W×L×H)
|
650×740×1050
mm
|
650×740×1050
mm
|
650×740×1250
mm
|
650×740×1250
mm
|
|
N.W. / G.W.
|
72 / 102 kg
|
82 / 112 kg
|
85 / 115 kg
|
95 / 125 kg
|
|
Chamber Material
|
SUS304
Stainless Steel
|
|
Power / Consumption
|
AC 220V 50Hz
16A / 4000W
|
|
Pressure
|
0.26 MPa
|
|
Sterilization Range
|
115–138°C / 0–9999
min
|
|
Dissolution / Holding
|
Dissol:
60–100°C | Hold: 45–80°C (300 min)
|
|
Unlock Temp / Controller
|
60–95°C
(Default 80°C) | PT100AA Class Sensor (0.1 Res)
|
|
Standard Accessories
|
Printer, 3Q
Thread Sealing, Mesh Basket/Tote, Gloves, Drain Hose
|
