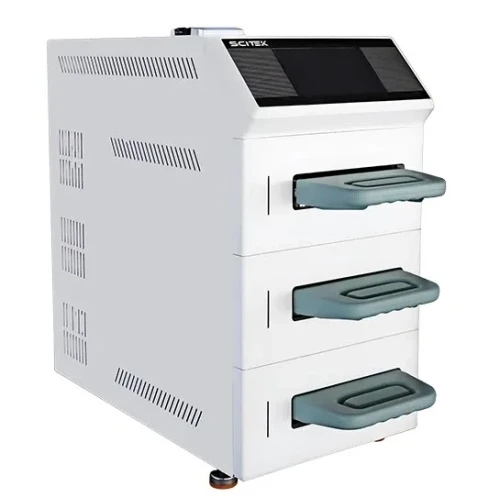

Cassette Sterilizer, Three-layer 2.5L Scitek Global
This specialist
sterilization unit is designed to provide an efficient and reliable solution
for sterilizing medical devices. Whether in hospital surgeries, dental clinics,
laboratories, or other healthcare facilities, our cassette sterilizers meet
stringent hygiene standards, ensuring that medical devices and equipment
achieve the highest level of sterility before use. Choosing our cassette
sterilizers means choosing an efficient, reliable, and safe sterilization
solution. We are committed to providing healthcare organizations with superior
device sterilization technology to ensure that patients and healthcare
professionals are always kept in a sterile environment during medical
procedures.
Features
1.
The sterilization effect is reliable
and rapid, positive pressure pulsating exhaust sterilization, and the entire
sterilization process only takes 7-10 minutes. It is suitable for multi
department instrument continuous surgery and emergency sterilization.
2.
7-inch touch interface, graphical operation.
The system operation status is displayed on the screen, and the sterilization
program can be safely interrupted at any time.
3.
Compact design, saving space. Each
layer is independently controlled.
4.
Multi level permission management
ensures the authenticity and effectiveness of sterilization data. Network
communication interface, which can be connected to the traceability system.
5.
Cassette sterilizer is equipped with
a built-in self-priming circulating water tank and automatic water inlet
function. The program operation is not affected by the volume of the water
tank. And it is equipped with a low water level detector to prevent the
evaporator from dry burning.
6.
Built in thermal printer, real-time
recording of sterilization process parameters, with the function of recording
and storing the last 60 running processes.
7.
Equipped with USB interface for data
storage.
Specification:
|
Model
|
ST-2000TC
|
ST-5000TC
|
ST-6000TC
|
|
External Size (WxDxH)(mm)
|
280x600×660
|
|
Cassette External Size (WxDxH)(mm)
|
196x390×40
|
196x480×80
|
196x×196×80
|
|
Cassette Internal Size (WxDxH)(mm)
|
180x280×38
|
180x380×78
|
180x480×78
|
|
Cassette Capacity
|
1.8Lx3
|
5.2Lx3
|
6.0Lx3
|
|
Rated Working Temperature
|
138℃
|
|
Rated Working Pressure
|
242kPa
|
|
Working Temperature Range
|
115 ℃~135 ℃
|
|
Water Tank Capacity
|
2.5L
|
|
Power Supply
|
AC 220V ± 22V; 50Hz ± 1Hz;
|
|
Working Medium
|
Water vapor
|
|
Water Source Supply
|
Ultrapure water, deionized water,
laboratory water, distilled water, purified water
|
|
Working Mode
|
Intermittent operation (≤6 cycles/hour)
|
|
Atmospheric Pressure Range
|
70.0kPa~106.0kPa
|
|
Environmental Temperature Range
|
+5 ℃ to+40 ℃
|
|
Working Relative Humidity
|
≤ 85%
|
|
Package Size (WxDxH)(mm)
|
460x710x810
|
|
Net Weight(kg)
|
60
|
84
|
86
|
|
Gross Weight
|
80
|
104
|
106
|
