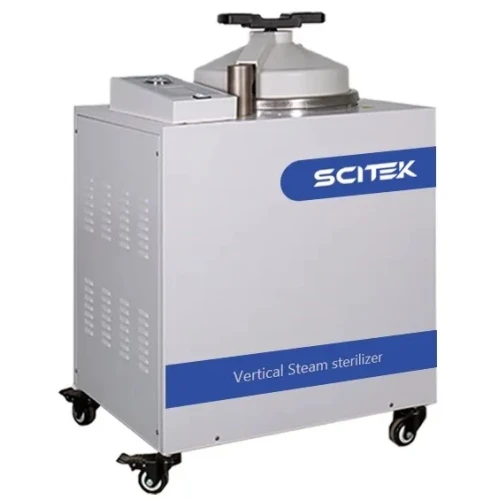

Vertical Pulse Vacuum Autoclave 50/80/100/120/150L Scitek Global

0 Customer Review
Highlights
  • Sterilization Temperature (℃) : 105~136
  • Max. Sterilization Pressure (Mpa) : 0.23
  • Drying Function : YES
  • Water Injection Method : Built-in water tank
  • Drying Time : 15min
  • The vertical pulse vacuum autoclave offers high capacity and easy-to-use controls in a compact unit.
View More Info
Call For Price
Vertical Pulse Vacuum Autoclave 50/80/100/120/150L Scitek Global

Features

1.       Overheat protection: Automatically cutting off heating with audible and visual indication when the autoclave is overheated.

2.       Anti-burning protection: Automatically cutting off heating with audible and visual indication when the autoclave is lack of water.

3.       Interlock safety: Preventing from starting a cycle if door is not properly closed or from door opening if there is pressure inside chamber.

4.       Steam pressure safety valve: Automatically works when the chamber pressure exceeds the limit.

5.       Automatic operation from sterilization to drying (Pre-vacuum sequence, heating, sterilization, steam discharge and post-vacuum drying) can be easily set and monitored by the LCD touch screen

6.       Built-in vacuum pump provides 3-time pulsed vacuum process,extracting the air out of the medical dressing and the Class A hollow medical instrument efficiently.

Specification:

Parameter

ST-V50PV

ST-V80PV

ST-V100PV

Capacity

50L

80L

100L

External Size (W×D×H)(mm)

580×636×990

636×710×1030

630×710×1295

Chamber Size (Ø×H)(mm)

Ø316×667

Ø386×695

Ø386×860

Chamber Material

SUS304

Sterilization Temp

105~136 ℃

Designed Temp / Max Working

150℃ / 136 ℃

Dissolution / Warming Temp

40~100℃ / 40~60℃

Temp Accuracy / Uniformity

0.1℃ / ≤±0.5℃

Designed / Max Ster. Pressure

0.3Mpa / 0.23Mpa

Ultimate Vacuum / Res.

-0.096MPa / 0.1KPa

Sterilization Time Range

0~99min

Controller / Display

PID / LCD touch screen

Drying Function / Time

YES / 15min

Sterilization Program

Medical instrument, Luminal, Dressings/Fabric, Rubber, Liquid, BD Test, Vacuum Test + 4 user programs

Water Injection Method

Built-in water tank

Power Consumption

3 kW

4.5 kW

5.4 kW

Power Supply

220V 50Hz

220V 50Hz

220V 50Hz

Standard SS Basket

2pcs

2pcs

2pcs

Weight (Net/Gross)

85kg / 122kg

95kg / 130kg

112kg / 152kg

Shipping Size (WD×H)(mm)

840×770×1170

880×910×1300

880×910×1550
