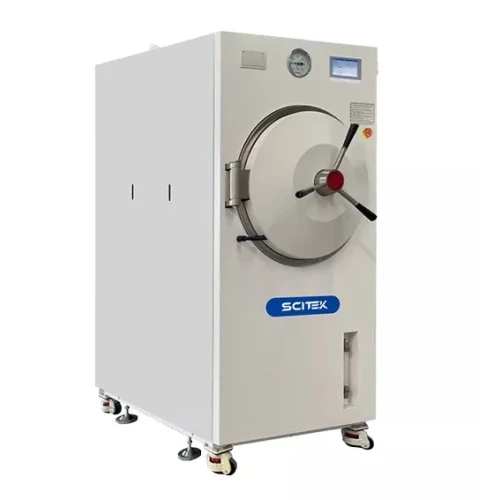

Horizontal Pulse Vacuum Autoclave 60-450L Scitek Global Best Price In Bangladesh

Horizontal Pulse Vacuum Autoclave 60-450L Scitek Global

0 Customer Review

Availability: Call For Price
Brand: Scitek Global

Highlights

Drying Function : Yes
Single Negative Pressure Pulsation Time : 90 seconds
Standard Sterilization Cycle Time : 40 minutes, Fast Cycle
Drying Stage Working Pressure (Vacuum) : ≥ -85 kPa (Deep Vacuum)
The horizontal pulse vacuum autoclave provides more efficient vacuum degassing with precise control of temperature, pressure and time to ensure safe and effective sterilisation.

View More Info

Call For Price

Product Details
Review & Comments

Horizontal Pulse Vacuum Autoclave 60-450L Scitek Global

Features

1. Overheat protection: Automatically cutting off heating with audible and visual alarming when the autoclave is overheated.

2. Interlock safety: Preventing from starting a cycle if door is not properly locked or from door opening if the chamber is pressurized or the power is disconnected.

3. Door-temperature interlock safety: Preventing from explosion of liquids if the liquids temperature is not cooled down the safe limit (20℃ lower than the local boiling point).

4. Anti-burning protection: Automatically cutting off heating with audible and visual alarming when the autoclave is lack of water.

5. Steam pressure safety valve: Automatically works when the chamber pressure exceeds the limit.

Specification:

Parameter	ST-H60PV	ST-H80PV	ST-H100PV
Capacity	60L	80L	100L
External Size (W×D×H)(mm)	1010×610×1450	1010×610×1450	1220×640×1450
Chamber Size (Ø×H)(mm)	Ø386×595	Ø386×717	Ø386×915
Chamber Material	SUS304
Sterilization Temp	105~136 ℃
Designed Temp	150℃
Max.Working Temp	136 ℃
Temp.Accuracy	0.1℃
Temp.Uniformity	≤±0.5℃
Designed Pressure	-0.1/0.3Mpa
Sterilization Pressure	0.23Mpa
Pressure Resolution	0.1KPa
Ultimate Vacuum	-0.096MPa
Temp. Controller	PID control by microprocessor
Display	4.3" touchscreen
Drying Function / Time	YES / 15min
Sterilization Program	Medical instrument, Luminal, Dressings, Rubber, Liquid, BD Test, Vacuum Test plus 4 user-customized programs.
Consumption	7.8 kW	8.2 kW	8.2 kW
Power Supply	380/220V, 50/60Hz
Standard Shelf	1pc	1pc	1pc
Standard Accessories	Printer
Net / Gross Weight	105kg / 165kg	120kg / 185kg	140kg / 252kg
Shipping Size (mm)	1280×700×1600	1280×700×1600	1330×780×1720
