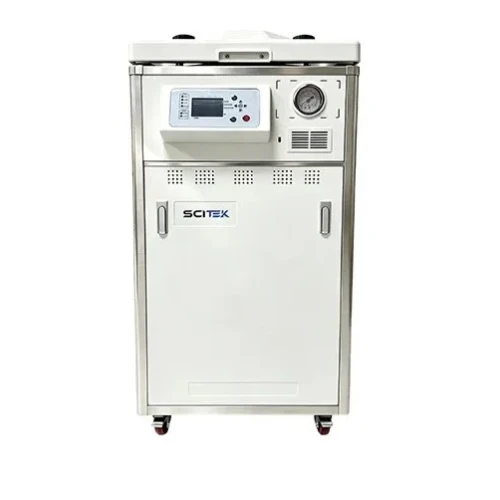

Vertical Top-loading Steam Sterilizer Scitek Global
Widely used in laboratories across sectors such as university
research, biopharmaceuticals, healthcare, and inspection and quarantine.
Commonly used for the efficient sterilization of culture media, glassware,
surgical instruments, and laboratory waste.
Features
1.
The sterilizer body is constructed from 304 stainless steel,
with a wall thickness of 2.0 mm.
2.
The lid closure mechanism employs a double-screw rotary sealing
structure, ensuring simple and safe operation.
3.
The LCD screen displays the sterilization process, with
automatic cycle control during sterilization and automatic shutdown upon
completion.
4.
One-click sterilization temperature selection: allows setting of
required sterilization temperature and duration for different items.
5.
Air-cooled rapid cooling device ensures rapid temperature
reduction of the pot body upon completion of sterilization.
6.
Over-temperature and over-pressure alarm function ,automatic
pressure relief venting, temperature deviation correction function, with
temperature verification interface.
7.
Equipped with casters at the bottom for easy mobility.
8.
Self-expanding sealing ring structure.
9.
Sterilization time reservation function to support scheduled
startup for users.
10. Built-in
automatic fault detection & diagnosis system.
11. Dual safety
protection system consisting of a mechanical safety relief valve and an
electronically controlled overpressure protector.
12. Integrated
water cut-off protection, anti-dry burning protection and electric leakage
protection systems.
Specification:
|
Parameter
|
ST-V40FE
|
ST-V60FE
|
ST-V80FE
|
|
Capacity (L)
|
40
|
60
|
80
|
|
Design Pressure
|
0.24 MPa
|
|
Rated Working Pressure
|
0.217 MPa
|
|
Rated Working Temperature
|
134 ℃
|
|
Design Temperature
|
138 ℃
|
|
Sterilization Temp. Range
|
50–134 ℃
|
|
Sterilization Time Range
|
0–9999 min
|
|
Function
|
Auto exhaust;
Internal circ; With waste water tank
|
Manual
exhaust; External exhaust; No waste water tank
|
Manual
exhaust; External exhaust; No waste water tank
|
|
Power Supply
|
AC 220/110V,
50/60Hz
|
|
Consumption
|
3.5 kW
|
|
Standard Mesh Basket (mm)
|
335×190 (×1)
|
335×360 (×1)
|
335×190 (×1),
335×360 (×1)
|
|
Chamber Size (Dia×H)(mm)
|
Φ355×400
|
Φ355×550
|
Φ355×700
|
|
External Size (W×D×H)(mm)
|
530×620×1005
|
530×620×1005
|
530×620×1155
|
|
Shipping Size (W×D×H)(mm)
|
670×790×1160
|
670×790×1160
|
670×790×1320
|
|
G.W. (kg)
|
95
|
101
|
110
|
|
Optional
|
Printer, USB
port, pulsating vacuum function
|
Printer, USB,
internal circ, pulsating vacuum function
|
Printer, USB,
internal circ, pulsating vacuum function
|
