Vertical Pulse Vacuum Steam Autoclave Scitek Global Best Price In Bangladesh

Vertical Pulse Vacuum Steam Autoclave Scitek Global

0 Customer Review

Availability: Call For Price
Brand: Scitek Global

Highlights

Sterilization Temperature (℃) : 105~136
Max. Sterilization Pressure (Mpa) : 0.23
Drying Function : YES
Water Injection Method : Built-in water tank
Drying Time : 15min
The vertical pulse vacuum autoclave offers high capacity and easy-to-use controls in a compact unit.

View More Info

Call For Price

Product Details
Review & Comments

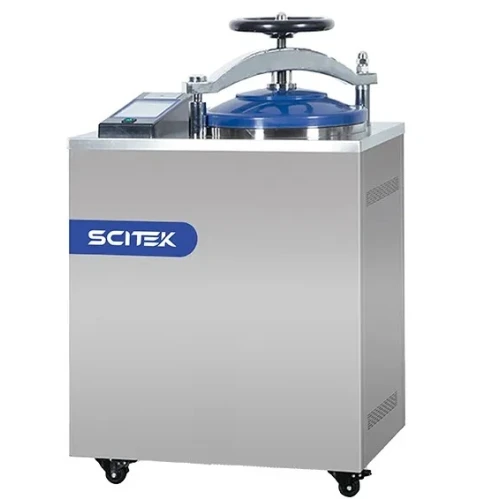

Vertical Pulse Vacuum Steam Autoclave Scitek Global

Features

1. The handwheel panning and quick-open structure allow you to operate the machine quickly, and the microcomputer automatic control allows you to set any parameters. The operation is very flexible.

2. Three times pre-evacuation

3. The vertical pulse vacuum steam autoclave is equipped with stainless steel drum or basket, high-quality stainless steel matrial, good corrosion resistance

4. LED touchscreen display and standard test interface, easy and fast to set and view the sterilization parameters.

5. Self-expanding seal

6. With a drying function and external steam generator, cold air is automatically vented and steam is automatically discharged after sterilization.

Specification:

Model	ST-V35PVM	ST-V50PVM	ST-V75PVM	ST-V100PVM
Volume	35L	50L	75L	100L
Power	3.5kW	3.5kW	4.5kW	4.5kW
Voltage	AC 220V, 50HZ
Design Pressure	0.25Mpa
Design Temperature	139℃
Rated Working Pressure	0.22Mpa
Rated Working Temperature	134℃
Sterilization Temperature	116℃~134℃
Sterilization Time Range	4~120 min
Temp Accuracy	±1℃
Drying Time Range	0~240min
Chamber Size (mm)	Ø300x545	Ø400x515	Ø400x665	Ø450x725
Bucket Size	Ø275x395	Ø375x235x2	Ø375x265x2	Ø425x275x2
Basket Size (optional)	Ø270x380	Ø370x220x2	Ø370x250x2	Ø420x265x2
External Sizes (W×D×H)(mm)	430x610x1050	540x761x1180	540x761x1180	790x570x1265
Shipping Size (W×D×H)(mm)	790x610x1130	800x600x1230	840x610x1310	870x650x1380
N.W./G.W. (kg)	115/130	118/138	124/150	132/160
