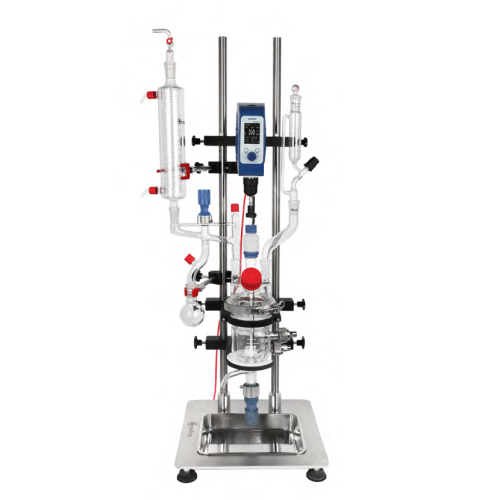

Bench top reactor all-in-one jacketed 250ml WRS-1501-02 Wiggens Germany
Bench top reactor all-in-one jacketed 250ml WRS-1501-02 Wiggens Germany

Bench top reactor all-in-one jacketed 250ml WRS-1501-02 Wiggens Germany

0 Customer Review
Highlights
  • Max. reaction volume recommendation 250mL
  • Flange DN100
  • Bore diameter of bottom valve 0-10mm
  • Reactor lid CN:24/40, SN:24/40(3), 45° -GL45
  • Material of reaction vessel and lid High quality borosilicate glass
  • Temperature range -60~200℃
  • Vessel pressure suitable for atmospheric and vacuum reaction
  • Jacket pressure up to 0.5bar
  • Material of wet part Borosilicate glass / PTFE / PFA
View More Info
Call For Price

Bench top reactor all-in-one jacketed 250ml WRS-1501-02 Wiggens Germany



NEW Bench top Reactor are complete with support stand, overhead stirrer and glassware, available with the optional multi-channel regulating valve. The unique design of the Bench top Reactor support stand and clamping system allows for quick and easy installation/removal of glassware and fits into most fume hood.





250ml complete bench top Reactor


Part number

Description

WRS-1501-021

Complete with Glassware & Stand, and Digital Overhead Stirrer WOHS-15 Pro

WRS-1501-022

Complete with Glassware, Stand, and High Torque Overhead Stirrer WOHS-400 Pro

WRS-1501-021M

Complete with Glassware & Stand, Multi channel regulating valve and Digital Overhead Stirrer WOHS-15 Pro

WRS-1501-022M

Complete with Glassware, Stand, Multi channel regulating valve and High Torque Overhead Stirrer WOHS-400 Pro



Specifications:



Max. reaction volume recommendation

250mL

Flange

DN100

Bore diameter of bottom valve

0-10mm

Reactor lid

CN:24/40, SN:24/40(3), 45° -GL45

Material of reaction vessel and lid

High quality borosilicate glass

Temperature range

-60~200℃

Vessel pressure

suitable for atmospheric and vacuum reaction

Jacket pressure

up to 0.5bar

Material of wet part

Borosilicate glass / PTFE / PFA

Inlet and outlet of jacket

DN15

Stirring speed

Available at 500 RPM for long-term operation, 800 RPM for short-term operation
If high-speed mixing applications are required, please consult your Wiggens
