Part number

Description

WRS-1501-031

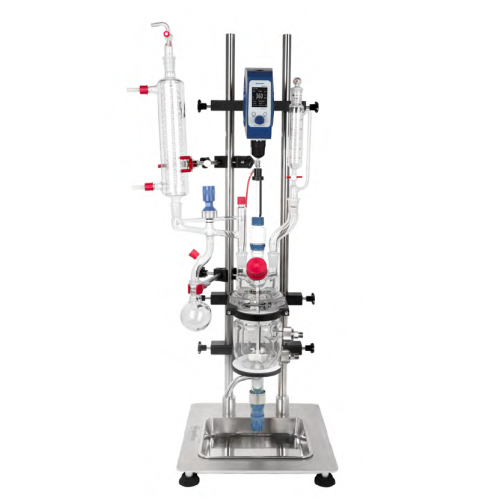

Complete with Glassware & Stand, and Digital Overhead Stirrer WOHS-15 Pro

WRS-1501-032

Complete with Glassware, Stand, and High Torque Overhead Stirrer WOHS-400 Pro

WRS-1501-031M

Complete with Glassware & Stand, Multi channel regulating valve and Digital Overhead Stirrer WOHS-15 Pro

WRS-1501-032M

Complete with Glassware, Stand, Multi channel regulating valve and High Torque Overhead Stirrer WOHS-400 Pro

Max. reaction volume recommendation

500mL

Flange

DN100

Bore diameter of bottom valve

0-10mm

Reactor lid

CN:24/40, SN:24/40(3), 45° -GL45

Material of reaction vessel and lid

High quality borosilicate glass

Temperature range

-60~200℃

Vessel pressure

suitable for atmospheric and vacuum reaction

Jacket pressure

up to 0.5bar

Material of wet part

Borosilicate glass / PTFE / PFA

Inlet and outlet of jacket

DN15

Stirring speed

Available at 500 RPM for long-term operation, 800 RPM for short-term operation
If high-speed mixing applications are required, please consult your Wiggens

Diameter/length of stirring Rod

Ø8mm / 500mm

Blade diameter

40mm（4 blade angled type stir paddle）

Length of condenser

300mm

Volume of collection flask

250mL

Volume of liquid funnel

125mL

Distance between discharge port and spill tray

130mm

Weight

28.9kg

Stand Dimensions ( W x D x H)

Approx.  500x 440x1200mm
