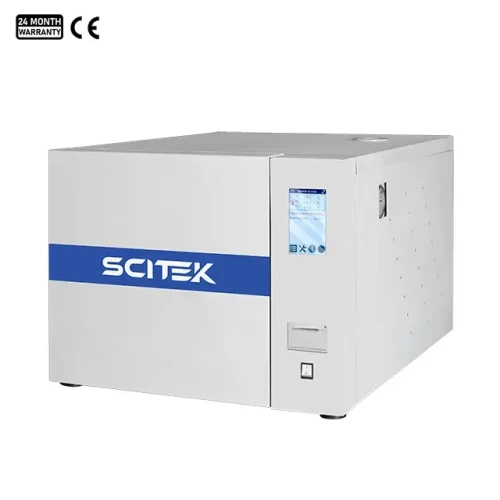

Benchtop Class B Autoclave 45L Scitek Global
Benchtop Class B Autoclave Features:
ü
Overheat protection: Automatically cutting off heating
with audible and visual alarming when the autoclave is overheated.
ü
Interlock safety: Preventing from starting a cycle if
door is not properly locked or from door opening if the chamber is pressurized.
ü
Anti-burning protection: Automatically cutting off
heating with audible and visual indication when the autoclave is lack of water.
ü
Steam pressure safety valve: Automatically works when
the chamber pressure exceeds the limit.
ü
Automatic operation from sterilization to drying
(Pre-vacuum sequence, heating, sterilization, steam discharge and post-vacuum
drying) can be easily set and monitored by LCD touch screen.
ü
Built-in vacuum pump provides 3-time pulsed vacuum
process, extracting the air out of the medical dressing and the A degree hollow
medical instrument efficiently.
ü
Built-in steam generator prevents the media from
contamination.
ü
Post-vacuum drying function offers efficient drying
results.
ü
Positive pulsing function removes the air efficiently.
ü
With 0.22µm air filter, blocks all microorganisms from
exiting the chamber during the air removal phase.
ü
Standard printer
ü
Optional real-time record sterilization process, error
and alarm information.
Specification
|
Specification
Parameter
|
Details
/ Value
|
|
Model
|
ST-B45B
|
|
Capacity
|
45L
|
|
External
Size (WxDxH)
|
870 x 600 x
520 mm
|
|
Chamber
Size (ØxH)
|
Ø316 x 590 mm
|
|
Chamber
Material
|
SUS304
Stainless Steel
|
|
Sterilization
Temp. Range
|
105 ~ 136 ℃
|
|
Max.
Working / Designed Temp.
|
136 ℃ / 150 ℃
|
|
Temp.
Accuracy & Uniformity
|
Accuracy: 0.1 ℃ |
Uniformity: ≤ ±0.5 ℃
|
|
Designed
/ Sterilization Pressure
|
-0.1 to 0.3
Mpa / 0.23 Mpa
|
|
Pressure
Resolution / Ultimate Vacuum
|
0.1 KPa / -0.096 MPa
|
|
Temp.
Controller & Display
|
PID
Microprocessor control | LCD Touch Screen
|
|
Drying
Function & Time
|
YES | 15 min
|
|
Sterilization
Programs
|
• Medical
Instrument • Luminal Instruments • Dressings • Rubber • Liquid • BD Test • Vacuum
Test
• Includes 4 user-customized programs
|
|
Water
Injection Method
|
Built-in water tank
|
|
Power
Supply & Consumption
|
220V 50Hz |
3.6 KW
|
|
Standard
Accessories
|
1 pcs SS shelf,
Built-in Printer
|
|
Weight
(Net / Gross)
|
65 kg / 120
kg
|
|
Shipping
Size (WxDxH)
|
1150 x 700 x 700 mm
|
