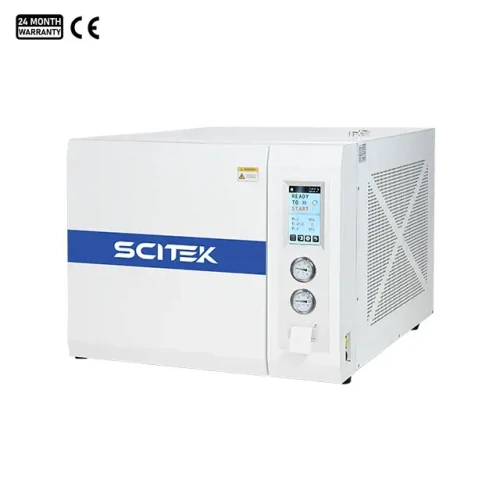

Benchtop Pulse Vacuum Autoclave, Class B Scitek Global

The ST-B60/80PV series is a type B sterilizer that uses steam as a medium. It achieves sterilization of items by repeatedly extracting vacuum and filling the sterilization chamber with steam to create a certain level of vacuum before introducing saturated steam, reaching the set pressure and temperature to achieve the purpose of sterilization. It is suitable for use in medical and health care departments such as stomatology, ophthalmology, operating rooms, supply rooms, and analysis rooms for sterilizing solid instruments, type A hollow instruments, implantable instruments, dressings and fabrics, rubber catheters, and liquid items.

The non-liquid program is suitable for the sterilization of surgical instruments, solid bare instruments, packaged instruments, rubber loads, etc. The liquid program is suitable for the sterilization of liquids such as water and culture media.

Features

ü  Process control
The whole process of preheating, replacement, heating, sterilization, exhaust and vacuum drying is automatically operated; it uses steam as the medium, adopts an efficient vacuum pumping system, and repeatedly pumps vacuum to achieve the effect of sterilization and drying.

ü  Multi-point Temperature Control Technology
Non-sealed liquid programs use mobile temperature sensors to measure tempera-ture, which can detect the internal temperature of the liquid in real time, making the internal temperature of the liquid more intuitive and clear.

ü  Insulation Function
The insulation function can be set as needed to achieve liquid culture medium sterilization, culture medium dissolution-insulation function.

ü  Safety Function
With over-temperature automatic protection device, anti-dry burning protection device, over-pressure automatic release device, over-current protection device, electronic circuit safety device

ü  Self-calibration Function
It has a complete background self-calibration system to realize the calibration of system parameters such as pressure and temperature. Without disassembling the instrument, the authorized tool can be used for on-site adjustment.

ü  Independently Installed Pressure Sensors
An independent pressure transmitter is installed in each of the inner chamber and evaporator to ensure that the equipment pressure is within the safe control range

ü  Water Injection and Drainage Method
Automatic water injection, automatic drainage

Specification
