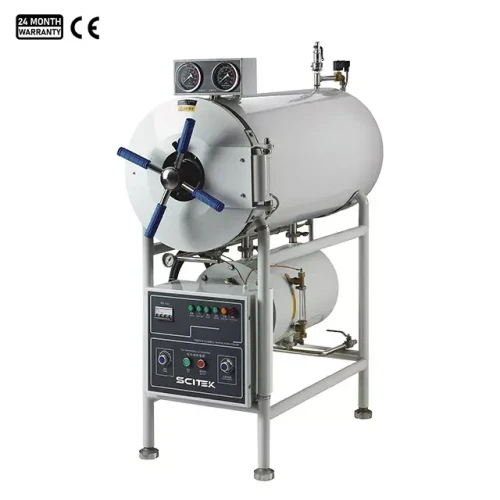

Horizontal Pressure Steam Sterilizer Scitek Global
The
horizontal pressure steam sterilizer, which adopte the way of gravity exchange
to release the cold air from the chamber more completely to ensure the reliable
sterilization. The control system automatically adjust the steam inlet and
outlet according to chamber temperature during sterilizing. This unit is an
ideal equipment for clinics, scientific research institutes and other
organizations to sterilize surgical instruments, fabric glassed, and the
culture media etc.
v
Automatically controlled the sterilizing process, easy
to operate.
v
With drying function, suitable for the medical
dressing drying.
v
With over-temperature, over-pressure auto-protect.
v
The door can not be open until the pressure in the
chamber is reduced to 0.027MPa. And the unit can not be started on if the door
doesn't close well.
v
The safety valve will be open automatically when the
inner pressure over 0.24MPa and the steam would be exhausted the water tank.
v
Automatically cut off the power if the water-lack
happened, and alarm at the meanwhile.
v
The chamber of the sterilizer is made of stainless
steel.
Specification
|
Parameter
|
ST-H150YDA
|
ST-H280YDA
|
ST-H500YDA
|
|
Capacity
|
150L
|
280L
|
500L
|
|
Chamber Size (ΦxH)
|
Φ440x1000 mm
|
Φ600x1000 mm
|
Φ700x1300 mm
|
|
Consumption
|
9 KW
|
12 KW
|
18 KW
|
|
External Size
(WxDxH)
|
1400x600x1300 mm
|
1400x770x1780 mm
|
1800x900x1820 mm
|
|
Weight (Net /
Gross)
|
240kg / 320kg
|
365kg / 465kg
|
470kg / 615kg
|
|
Shipping Size
(WxDxH)
|
1560x750x1850 mm
|
1680x920x1950 mm
|
1850x1050x2010 mm
|
Common Parameters (All Models): Working
Pressure: 0.22MPa | Max Temp: 134℃ | Sterilization: 40~134℃ (0-60min) | Drying:
0-60min | Uniformity: ≤±2℃ | Power: 380V 50Hz
