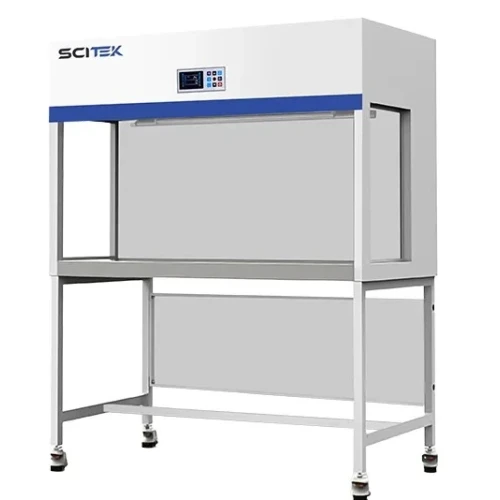

Economic Horizontal Laminar Flow Cabinet Scitek Global
Features
ü
Ergonomic control panel location, centered and angled down for
an easy reach & viewing.
ü
Brushed stainless steel work surface is for easy cleaning.
ü
The non-direct light source design can effectively relieve the
operator's visual fatigue under the condition of ensuring the illumination.
ü
Intuitive and easy-to-use microprocessor controller with LCD
display, graphical and digital display of the operating status of each
function, such as filter life, UV life etc.
Reliability:
ü
UV sterilization with UV lamp timing function.
ü
Side windows are made of UV-resistant tempered glass.
ü
The host and sockets have independent capacitors to prevent
current overload.
ü
Memory function in case of power-failure.
Convenience:
ü
HEPA filter and UV life indicators facilitate a timely
replacement plan.
ü
Two side glass windows installed for easy experiment
observation.
ü
Easy-to-change pre-filter installed could extend the HEPA filter
lifetime.
ü
Equipped with temperature sensor to show the real temperature
during operation.
ü
Waterproof socket provide convenience for small instruments to
be used in the operating area.
Specification
|
Specification Parameter
|
LCB-H1100E
|
LCB-H1300E
|
|
External Size (W×D×H) (mm)
|
1100×750×1750
|
1300×750×1750
|
|
Internal Size (W×D×H) (mm)
|
1020×510×620
|
1220×510×620
|
|
Work Surface Height
|
750mm
|
|
Control System
|
Microprocessor controller with LCD display (displays operating status)
|
|
Airflow Velocity
|
0.2~0.5m/s (speed adjustable)
|
|
Air Filtration & Cleanliness
|
Washable polyester fiber pre-filter + HEPA Filter (>99.995%
efficiency at 0.3μm); Class 100 (ISO 5)
|
|
Cabinet Construction
|
Main body: Electro-galvanized steel with antimicrobial powder coating
Work Surface: 304 Stainless steel
Windows: 5 mm UV resistant tempered glass
|
|
UV Lamp (253.7nm, Timer/Interlock)
|
20W×1
|
30W×1
|
|
LED Lamp
|
6.5W×1
|
9.6W×1
|
|
Power Consumption
|
160W
|
170W
|
|
Power Supply / Illumination
|
AC220V±10%, 50/60Hz (or 110V±10%, 60Hz) / ≥900Lux
|
|
Sound Emission
|
≤65dB(A)
|
|
Accessories
|
Standard: Base Stand, Waterproof Socket×2, Footmaster Caster
Optional: Air Velocity Sensor, IV Bar with Hooks
|
|
Weight (Net / Gross)
|
150 kg / 210
kg
|
170 kg / 230
kg
|
|
Shipping Size (mm) / Volume
|
1240×930×1255
/ 1.45 m³
|
1440×930×1255
/ 1.7 m³
|
