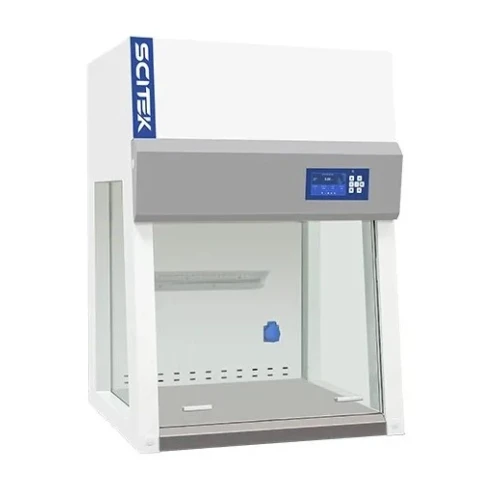

PCR Cabinet PCR-800 Scitek Global
PCR
cabinet are designed to reduce the risk of contamination while performing
Polymerase Chain Reaction (PCR) experiments, it direct HEPA-filtered air
downward over the work area to provide ISO Class 5 (formerly Class 100)
conditions and protect your work during preparatory procedures and
amplifications.
Features
1.
Front sliding sash interlock with fan
and UV lamp.
2.
Front sash and side windows are made
of UV-resistant tempered glass.
3.
The host and sockets have independent
capacitors to prevent current overload.
Humanized design:
1.
Standard shelves with IV bar.
2.
Memory function in case of
power-failure.
3.
HEPA filter and UV life indicators
facilitate a timely replacem ent plan.
4.
Easy-to-change pre-filter installed
could extend the HEPA filter’s life time.
5.
Equipped with temperature sensor to
show the real temperature during operation.
6.
Waterproof socket provide convenience
for small instruments to be used in the operating area.
7.
Perforations at the back wall of the
work zone which are designed to eliminate air turbulence and the
possibility of dead air corners in the work zone.
Specification
|
Model
|
PCR-800
|
|
External Size
(WxDxH)
|
710x680x1050 mm
(Without Stand)
710x680x1680 mm (With Stand)
|
|
Internal Size
(WxDxH)
|
610x590x625 mm
|
|
Work Surface
Height
|
750mm
|
|
Control System
|
Microprocessor
controller with LCD display & Interlock function
|
|
Airflow Velocity
|
0.2~0.5m/s (Speed
adjustable)
|
|
Air Filtration
|
Pre-Filter
(Washable Polyester) & HEPA Filter (>99.995% efficiency at 0.3µm);
Class 100 (ISO 5)
|
|
Cabinet Structure
|
Electro-Galvanized
steel with antimicrobial powder coating; 304 Stainless steel work surface; 5
mm UV resistant tempered glass front window
|
|
Lamps &
Illumination
|
UV Lamp: 10W×2
(with timing); LED Lamp: 8W×2; Illumination: ≥500Lux
|
|
Electrical &
Consumption
|
Power: 149W (excludes
socket load); Supply: AC220V±10%, 50/60Hz; 110V±10%, 60Hz
|
|
Weight
|
Net: 80kg /
Gross: 115kg (Without Stand)
Net: 130kg / Gross: 165kg (With Stand)
|
|
Shipping Info
|
Size:
920x855x1190 mm | Volume: 0.94m³
|
|
Standard
Accessories
|
LED Lamp, UV
Lamp, 1x Waterproof Socket, Shelves with IV Bar, Air Velocity Sensor
|
|
Optional
Accessories
|
Base Stand, Gas
Tap
|
