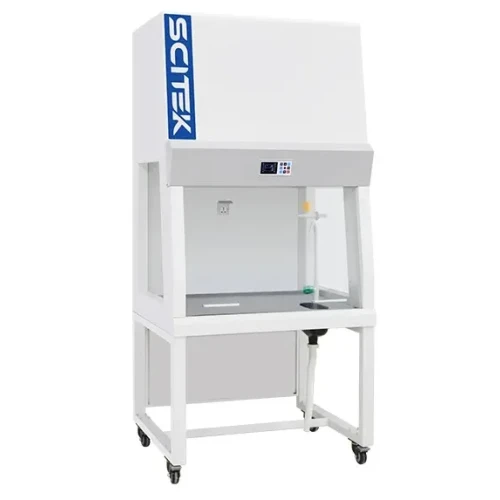

Fume Hood, Ductless or Ducted Type Dual Choose 1000×850×2150 Scitek Global
Ductless fume hood
(also known as a ductless fume hood, portable chemical hood), which uses carbon
or HEPA filtration to protect laboratory personnel from toxic chemical fumes, odors
and particles. Real-time adsorption and treatment of airborne solvents, acid
gases, formaldehyde and other hazardous substances. The air in the lab is then
circulated and cleaned
Humanized:
Ergonomic control panel location,
centered and angled down for an easy reach & viewing.
Made of solid psychological board,
resistant to strong acid and alkali.
The non-direct light source design
can effectively relieve the operator's visual fatigue under the condition of
ensuring the illumination.
Intuitive and easy-to-use
microprocessor controller with LCD display, graphical and digital display of
the operating status of each function, such as filter life, UV life etc.
Reliability:
Front sliding sash interlock with fan
and UV lamp.
UV sterilization with UV lamp timing
function.
Front sash and side windows are made
of UV-resistant tempered glass.
The host and sockets have independent
capacitors to prevent current overload.
Memory function in case of
power-failure.
Convenience:
HEPA filter and UV life indicators
facilitate a timely replacement plan.
Two side glass windows installed for
easy experiment observation.
Easy-to-change pre-filter installed
could extend the HEPA filter’s lifetime.
Fume hood equipped with temperature
sensor to show the real temperature during operation.
Waterproof socket provide convenience
for small instruments to be used in the operating area.
Specification
|
Model
|
FMH-1000D
|
FMH-1200D
|
|
External
Size (WxDxH)(mm)
|
1000×850×2150
|
1220×850×2150
|
|
Internal
Size (WxDxH)(mm)
|
880×730×745
|
1100×730×745
|
|
Max.
Opening
|
520mm
|
520mm
|
|
Airflow
Velocity
|
0.3~0.8 m/s
|
0.3~0.8 m/s
|
|
Filter
|
1pcs Active
Carbon Filter
|
1pcs Active
Carbon Filter
|
|
Main
Body
|
Electro-Galvanized
steel with antimicrobial powder coating
|
Electro-Galvanized
steel with antimicrobial powder coating
|
|
Work
Surface
|
Solid
physicochemical board
|
Solid
physicochemical board
|
|
UV Lamp
|
20W×1
|
30W×1
|
|
LED
Lamp
|
6.5W×1
|
9.6W×1
|
|
Consumption
|
400W
|
500W
|
|
Net
Weight (kg)
|
195
|
215
|
|
Gross
Weight (kg)
|
250
|
280
|
