Handheld Digital Anemometer Scitek Global

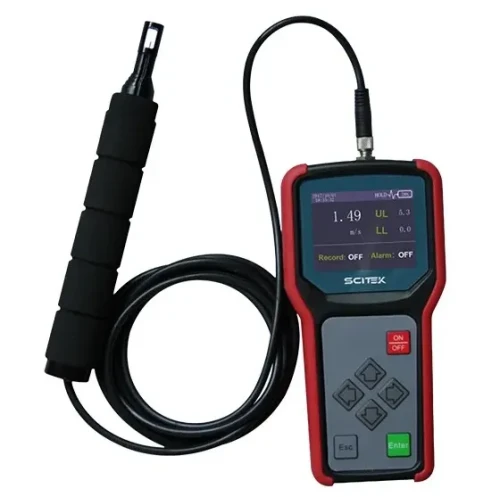

The HDA-40 handheld digital
anemometer Meter is for measure air velocity. With compact structure, small
size, stable and reliable and easy to use. It can be used wildly in heating,
ventilation, air conditioning, environmental protection, weather, clean room,
chemical fiber textile, various air velocity laboratory and so on.
Features
1. Using new semiconductor nm process vultra-low-power 32 bit
microprocessor.
2. 2.6inch IPS color screen, the resolution is 320x240.
3. With Large memory for storing data (16000samples) and can view
history data directly.
4. The data can be download to PC via USB.
5. Zero-scale calibration.
6. With Over-voltage protection, Overcharge Protection and with
function of resistance of the static, electromagnetic interference.
Specification
|
Model
|
HDA-40
|
|
Sensor Type
|
Hot bulb
|
|
Measurement Range
|
0~2m/s or
0.~20m/s (Selectable)
|
|
Resolution
|
0.01m/s
|
|
Detection
Precision
|
≤3％(Full Scale)
|
|
Response Time
|
≤3s
|
|
Operating
Environment
|
Temperature: 0~50℃；Humidity: ＜85%RH;
|
|
Atmosphere
pressure: 970~1040hPa
|
|
Power Supply
|
3.7V/2400mA,
Li-battery
|
|
Accessory
|
USB Charger line,
Data line, User manual, Calibration certificate
|
|
Net Weight
|
0.36kg
|
|
Gross Weight
|
2kg
|
|
External Size
(W×D×H)
|
55×85×180mm
|
|
Shipping
Size(W×D×H)
|
120x300x180mm
|
