Ductless Fume Hood 800x620x1800 Scitek Global

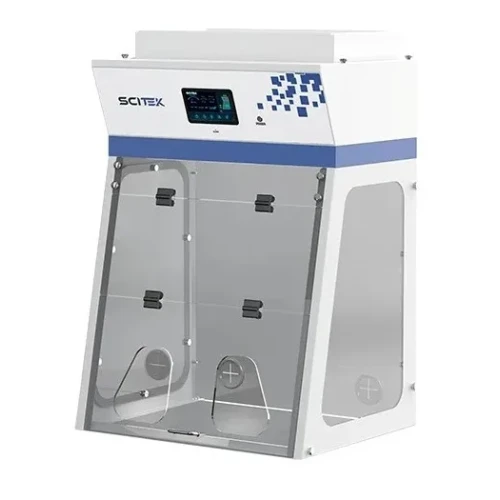

Ductless fume hood
(also known as a ductless fume hood, portable chemical hood), which uses carbon
or HEPA filtration to protect laboratory personnel from toxic chemical fumes, odors
and particles. Real-time adsorption and treatment of airborne solvents, acid
gases, formaldehyde and other hazardous substances. The air in the lab is then
circulated and cleaned
Features
ü Humanized design, three-sided acrylic transparent material
observation window, convenient for multi-angle observation.
ü Low noise design, using high-quality DC centrifugal blower to
ensure performance while providing users with a quiet working environment.
ü Memory function in case of power-failure.
ü Audio and Visual alarm on filter life,VOC concentration
ü Brushed stainless steel work surface is for easy cleaning.
ü Different sizes available from 2 feet to 6 feet, benchtop use or
mounted on a mobile base.
ü Optional upgrade LED lamp can be choosed.
Color Rendering Index up to Ra98, Truly restore the true color of the
experimental object, the experimental results are more accurate.
RG0 without blue light, protects the operator from blue light.
Specification
|
Specification Parameter
|
Details / Value
|
|
External
Size (WxDxH)(mm)
|
800x620x1130
(Without Base Stand); 800x620x1800 (With Base Stand)
|
|
Internal
Size (WxDxH)(mm)
|
780x540x775
|
|
Max.
Opening
|
650mm
|
|
Operation
Surface Height
|
690mm
|
|
Control
System
|
7-inch
color touch screen, real-time display air velocity, VOC concentration,
temperature and humidity, and filter life time etc
|
|
Airflow
System
|
Airflow
Velocity: 0.4-0.6m/s, speed adjustable
|
|
Air
Filtration System
|
Filter:
1pcs Pre-filter (Polyester fiber, washable), 1pcs Active Carbon filter
|
|
Cabinet
Construction
|
Main
Body: Electro-galvanized steel with antimicrobial Powder Coating
Work Surface: 304 Stainless Steel, Max. loading of worksurface: 70kg
Front Window: Manual acrylic window
|
|
Electrical
System
|
LED
Lamp: 16W×2
Blower: DC Centrifugal blower, adjustable speed, low noise
Consumption: 60W
Power Supply: 220V±10%, 50/60Hz; 110V±10%, 60Hz
|
|
Sound
Emission
|
≤50dB(A)
|
|
Standard
Accessory
|
1.
Active Carbon Filter×1; 2. Pre-Filter×1; 3. LED Lamp×2
|
|
Optional
Accessory
|
1.
Base Stand; 2. Base Cabinet; 3. HEPA Filter; 4. Chemical filter; 5. Upgraded
LED Lamp; 6. Solid Physicochemical Board Work Surface
|
|
Net
Weight
|
96kg
|
|
Gross
Weight
|
138kg
|
|
Shipping
Size (WxDxH)(mm)
|
1160×840×1320
|
|
Shipping
Volume
|
1.3m³
|
