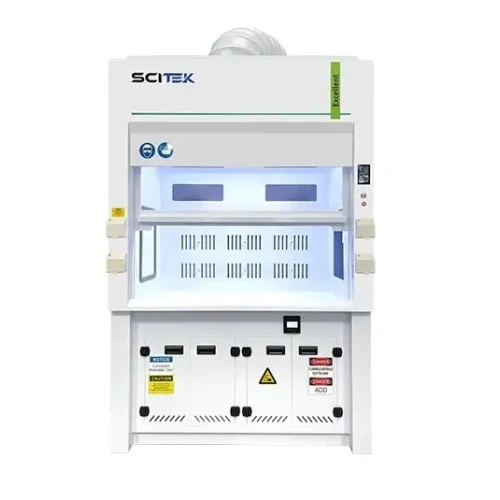

PP Spray Fume Hood with Scrubber Scitek Global
This benchtop fume
hood offers excellent flexibility and is perfect for small labs. It can easily
vent contaminated air from the lab. The pre-filter cartridge is made of
washable polyester fibre to meet a wide range of installation and application
requirements. Our benchtop fume hood utilizes HEPA filtration to protect
laboratory personnel from particles. Known for its plug-and-play feature and mobility, Ductless
fume hood guarantees a hassle-free installation and no lab work interruption.
Features
1.
Structure Design
The mainframe is made of PP
(polypropylene) material, resistant to strong acid, alkali and strong
corrosion.
Double Channel Spray (with double
scrubber), more cleaner, processing rate up to 90%.
The main cabinet and the base cabinet
are easy to disassemble and move.
2.
Safety Protection
Automatic dosing system.
Built-in flushing system.
Excellent pollution control
performance.
Base cabinet with bypass Grille, Sash
air foil and bypass system achieve function of Air supplement.
The flushing system behind the
deflator washes away all perchlorate precipitates on the deflator, preventing
any explosive salt buildup.
Built-in water pump, ensures that the
water pressure in the flushing system is constant.
3.
Easy Maintenance
The work surface is easy to clean.
The interior of the cabinet is easy
to disassemble, easy to maintain and clean.
With maintenance access port,
convenient engineer maintenance.
Specification
|
Specification
|
FMH-900DP(S)
|
FMH-1200DP(S)
|
|
External Size (W×D×H) (mm)
|
900×1050×2275
|
1200×1050×2275
|
|
Internal Size (W×D×H) (mm)
|
770×500×900
|
1070×500×900
|
|
Max Opening
|
750mm
|
750mm
|
|
Work Surface Height
|
800mm
|
800mm
|
|
Spray System
|
Double Channel Spray
|
Double Channel Spray
|
|
PH Value Display
|
Supported (485 Protocol)
|
Supported (485 Protocol)
|
|
Control System Display
|
4.3" LCD touch screen
|
4.3" LCD touch screen
|
|
Alarm System
|
Leakage alarm system
|
Leakage alarm system
|
|
Airflow Velocity
|
0.3-0.5m/s (Adjustable)
|
0.3-0.5m/s (Adjustable)
|
|
Air Volume
|
1000 m³/h
|
1200 m³/h
|
|
Exhaust Outer Diameter
|
Φ160mm
|
Φ250mm
|
|
Main Body & Work Surface
|
PP (Polypropylene)
|
PP (Polypropylene)
|
|
Front Window
|
Manual door, PVC
|
Manual door, PVC
|
|
Electrical (LED Lamp)
|
2×30W
|
2×30W
|
|
Max. Power Consumption
|
200W
|
200W
|
|
Power Supply
|
AC 220V/110V
|
AC 220V/110V
|
|
Illumination
|
800 Lux
|
800 Lux
|
|
Sound Emission
|
≤60dB(A)
|
≤60dB(A)
|
|
Net Weight
|
160 kg
|
250 kg
|
|
Gross Weight (Main + Base)
|
240 kg (150+90)
|
340 kg (220+120)
|
|
Shipping Volume
|
3.7 m³
|
4.8 m³
|
