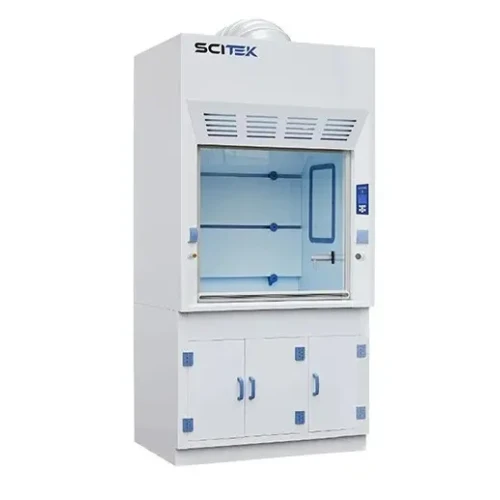

PP Fume Hood 1047×800×2450 Scitek Global
PP fume hood is
suitable for the experiment of strong acid, strong alkali, strong corrosion and
volatility. It can effectively protect the operator from inhaling toxic gases
and protect the operator and sample safety. And dramatically reduces the risk
of fire and explosion. The environment can also be protected by installing
appropriate filters.
Features
1.
The mainframe is made of PP
(polypropylene) material, integrally welded.
2.
Resistant to strong acid, alkali and
strong corrosion.
3.
Microprocessor control system, LCD
display.
4.
The top adopts a top-shield suction
design, and the deflector is made of homogeneous PP material, which has strong
acid and alkali resistance.
5.
Without airflow dead angle, and the
maximum exhaust gas capture performance can be obtained.
6.
The operating surface is equipped
with water-retaining and anti-overflow treatment.
Specification
|
Specification
|
FMH-1000DP
|
FMH-1200DP
|
FMH-1500DP
|
FMH-1800DP
|
|
External Size (W×D×H) (mm)
|
1047×800×2450
|
1247×800×2450
|
1547×800×2450
|
1847×800×2450
|
|
Internal Size (W×D×H) (mm)
|
787×560×700
|
987×560×700
|
1287×560×700
|
1587×560×700
|
|
LED Lamp Power
|
16W × 2
|
16W × 2
|
30W × 2
|
36W × 2
|
|
Power Consumption
|
450W
|
450W
|
450W
|
900W
|
|
Gross Weight (Main Body) (kg)
|
137
|
155
|
180
|
206
|
|
Gross Weight (Base Cabinet) (kg)
|
89
|
99
|
114
|
140
|
|
Shipping Volume (m³)
|
2.9
|
3.4
|
4.1
|
4.8
|
Common
Features & Construction (All Models)
·
Control System: Microprocessor
controller with LCD display showing operational status.
·
Airflow Velocity: Adjustable
speed between 0.3–0.8 m/s.
·
Cabinet Structure: Main
body built with 8mm porcelain white PP (acid, alkali, and corrosion resistant).
·
Work Surface: Solid
physicochemical board with high chemical resistance.
·
Front Window: Manual,
5mm toughened glass with adjustable height.
