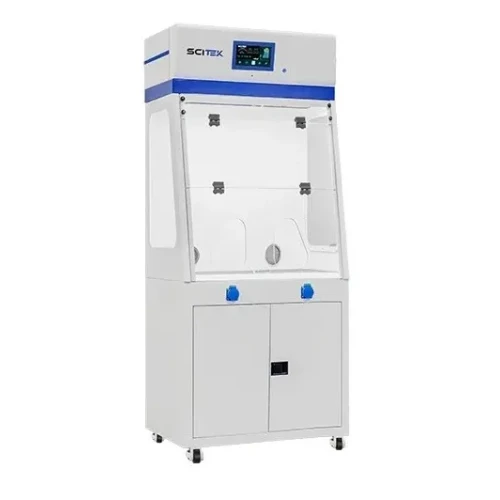

Ductless Fume Hood, Touch Screen Scitek Global
FMH-DL Series ductless fume hood is designed specifically to
protect the safety of laboratory personnel during experimental operations. It
can prevent operators from inhaling toxic, harmful, disease causing, or unknown
toxic chemicrals during experiments. It efficiently purifies ventilation cabinets and the air
inside the laboratory.
Features
1.
Real time temperature and humidity
environmental monitoring system, displaying temperature and humidity, setting
alarm parameters to ensure product safety.
2.
With Filter saturation alarm system:
The product is equipped with double-layer filters and dual VOC probes. One
probe monitors indoor air quality and the other monitors filter saturation
status. The filter is set to a saturation alarm value, which will sound an
alarm if it exceeds the range. When the concentration exceeds the set value for
a long time, the filter needs to be replaced.
3.
With advanced filtering module
system, according to experimental requirements, to meet various different
experiments. Fully adsorbs harmful gases, particulate dust, and other
substances generated during filtration experiments.
4.
Provide API interfaces and support
third-party platform docking functionality.
5.
With Automatic Closed-Loop Airflow
Velocity Control System.
Specification
|
Parameter
|
FMH-800DL(II)
|
FMH-1000DL(II)
|
|
External Size (Main
Unit)
|
800 × 620 × 1100 mm
|
1000 × 620 × 1100 mm
|
|
External Size (Base
Cabinet)
|
800 × 600 × 690 mm
|
1000 × 600 × 690 mm
|
|
Internal Size
|
780 × 570 × 775 mm
|
980 × 570 × 775 mm
|
|
Control System
|
7-inch LCD touch screen with
VOC/Filter saturation/Fan failure alarms
|
7-inch LCD touch screen with
VOC/Filter saturation/Fan failure alarms
|
|
Airflow Velocity
|
0.4 ~ 0.6 m/s
|
0.4 ~ 0.6 m/s
|
|
Airflow Volume
|
130 m³/h
|
260 m³/h
|
|
Pre-Filter
|
1 pc
|
2 pcs
|
|
Active Carbon
Filter
|
1 group (1 pc)
|
1 group (2 pcs)
|
|
Cabinet
Construction
|
Galvanized steel (≥1.5mm) with Epoxy
resin coating; Epoxy resin work surface
|
Galvanized steel (≥1.5mm) with Epoxy
resin coating; Epoxy resin work surface
|
|
Electrical System
|
LED Lamp 16W×2, 1pc PSC Blower, 60W
Max.
|
LED Lamp 16W×2, 2pcs PSC Blower,
120W Max.
|
|
Sound Emission
|
≤52 dB(A)
|
≤52 dB(A)
|
|
Net Weight (Main
Unit / Cabinet)
|
102 kg / 54 kg
|
114 kg / 62 kg
|
|
Gross Weight (Main
Unit
|
122 kg / 69 kg
|
144 kg / 82 kg
|
