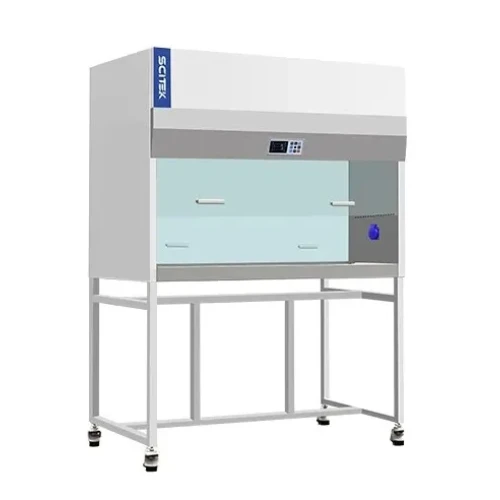

Vertical Laminar Flow Cabinet, Double Sides Scitek Global
Double sides vertical laminar flow
cabinet provides sample protection as purified air travels across the
working zone of the cabinet in a vertical, unidirectional stream and leaves the
main work chamber across the entire open front of the cabinet. The
Double-sides design is more convenient for multiple people to
operate together.
Features
ü Memory function in case of power-failure.
ü HEPA filter and UV life indicators facilitate a timely
replacement plan .
ü Double sides glass windows installed for easy experiment
observation.
ü Easy-to-change pre-filter installed could extend the HEPA
filter’s lifetime.
ü Equipped with temperature sensor to show the real temperature
during operation.
ü Waterproof socket provide convenience for small instruments to
be used in the operating area.
Safety
Performance:
1.
Front and Back sliding sash interlock
with fan and UV lamp.
2.
UV sterilization with UV lamp timing
function.
3.
Front sash and back windows are made
of 5 mm UV Resistant Tempered Glass .
4.
The host and sockets have independent
capacitors to prevent current overload
Specification
|
Parameter
|
LCB-V1100D
|
LCB-V1300D
|
LCB-V1600D
|
|
External
Size (WxDxH) (mm)
|
1090×755×1850
|
1360×755×1850
|
1665x755x1850
|
|
Internal
Size (WxDxH) (mm)
|
950×650×620
|
1220×650×620
|
1525x650x620
|
|
Max.
Opening / Work Height
|
450mm
(Safety: 400mm) / Work Surface: 750mm
|
|
Control
System
|
Microprocessor
controller with LCD display
|
|
Airflow
Velocity
|
0.2~0.5m/s,
speed adjustable
|
|
Air
Filtration System
|
Pre-Filter:
Washable polyester fiber (1pc)
HEPA Filter: >99.995% efficiency at 0.3μm (1pc)
Cleanliness: Class 100 (ISO 5)
|
|
Cabinet
Construction
|
Main
Body: Electro-galvanized steel with antimicrobial powder coating
Work Surface: 304 Stainless steel
Front Window: 5mm UV resistant tempered glass manual sliding sash
|
|
UV
Lamp
|
20W × 1 (with
timer & interlock)
|
30W × 1 (with
timer & interlock)
|
30W × 1 (with timer
& interlock)
|
|
LED
Lamp
|
6.5W × 1
|
9.6W × 1
|
9.6W × 1
|
|
Power
Consumption & Supply
|
155W (Excl.
socket)
AC220V/110V
|
285W (Excl.
socket)
AC220V/110V
|
285W (Excl.
socket)
AC220V/110V
|
|
Illumination
& Sound
|
≥900
Lux / ≤65 dB(A)
|
|
Standard
Accessories
|
Base
Stand, LED Lamp, UV Lamp, 2x Waterproof Sockets, Footmaster Caster
|
|
Net
/ Gross Weight
|
180 kg / 230 kg
|
220 kg / 275 kg
|
260 kg / 320 kg
|
|
Shipping
Size & Volume
|
1220×880×1395 mm
1.5 m³
|
1490×880×1395 mm
1.8 m³
|
1795x880x1395 mm
2.2 m³
|
