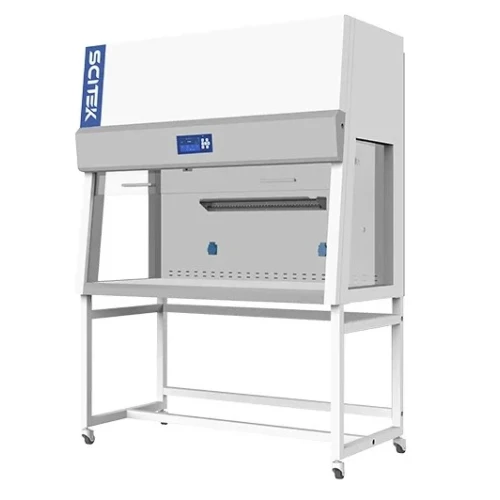

PCR Cabinet 750mm Scitek Global
PCR cabinet are designed to reduce
the risk of contamination while performing Polymerase Chain Reaction (PCR)
experiments, it direct HEPA-filtered air downward over the work area to provide
ISO Class 5 (formerly Class 100) conditions and protect your work during
preparatory procedures and amplifications.
Features
1.
Perforations at the back wall of the
work zone which are designed to eliminate air turbulence and the possibility of
dead air corners in the work zone.
2.
Variable digital timer that provides
UV light exposure continuously or in user-selected increments of 15,30, 60,120
till 999 minutes to deactivate DNA and RNA contaminants.
3.
Ergonomic Control Panel Location,
centered and angled down for an easy reach & viewing.
4.
The non-direct light source design
can effectively relieve the operator's visual fatigue under the condition of
ensuring the illumination.
5.
Brushed stainless steel work surface
is for easy cleaning
Safety Performance:
1.
Front sliding sash interlock with fan
and UV lamp.
2.
Front sash and side windows are made
of UV-resistant tempered glass.
3.
The host and sockets have independent
capacitors to prevent current overload.
Humanized design:
1.
Standard shelves with IV bar.
2.
Memory function in case of
power-failure.
3.
HEPA filter and UV life indicators
facilitate a timely replacem ent plan.
4.
Easy-to-change pre-filter installed
could extend the HEPA filter’s lifetime.
5.
Equipped with temperature sensor to
show the real temperature during operation.
6.
Waterproof socket provide convenience
for small instruments to be used in the operating area.
Specification
|
Parameter
|
PCR-1100
|
PCR-1300
|
|
Work Surface Height
|
750 mm
|
|
Control System
|
Microprocessor controller with LCD
display, front sash interlock, HEPA & UV life indicators
|
|
Airflow Velocity
|
0.2 ~ 0.5 m/s (Speed adjustable)
|
|
Air Filtration
|
Washable Polyester fiber pre-filter;
HEPA filter (>99.995% efficiency at 0.3μm); Class 100 (ISO 5)
|
|
Cabinet Structure
|
Electro-galvanized steel with
antimicrobial powder coating (Main); 304 Stainless steel (Work surface); 5 mm
UV resistant tempered glass (Front & Side windows)
|
|
External Size (WxDxH)
|
1050 x 710 x 1850 mm
|
1320 x 710 x 1850 mm
|
|
Internal Size (WxDxH)
|
950 x 615 x 625 mm
|
1220 x 615 x 625 mm
|
|
UV Lamp
|
20W x 1 (With timing & interlock function)
|
30W x 1 (With timing & interlock function)
|
|
LED Lamp
|
8W x 2
|
12W x 2
|
|
Power Consumption
|
155W (Excludes socket loading)
|
285W (Excludes socket loading)
|
|
Power Supply
|
AC 220V±10%, 50/60Hz; 110V±10%, 60Hz
|
|
Illumination & Sound
|
Illumination: ≥900 Lux; Sound Emission:
≤62 dB(A)
|
|
Accessories
|
Standard: Base stand, LED & UV
lamps, 2x Waterproof sockets, Shelves with IV bar, Air velocity sensor
Optional: Gas Tap
|
|
Gross Weight
|
225 kg
|
255 kg
|
|
Shipping Size (WxDxH)
|
1190 x 990 x 1325 mm
|
1460 x 990 x 1325 mm
|
|
Shipping Volume
|
1.56 m³
|
1.92 m³
|
