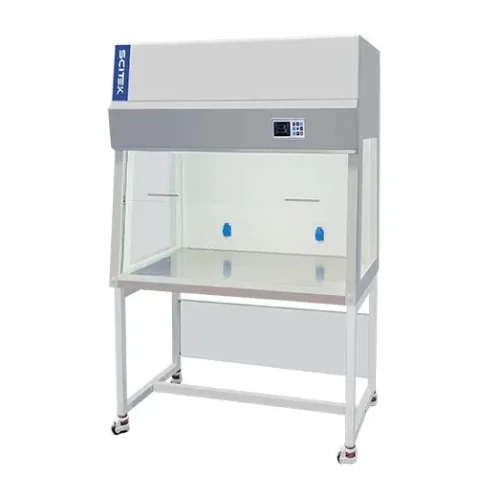

Vertical Laminar Flow Cabinet, Economic Type 750 mm Scitek Global
Combining a mature structural design with a highly efficient
purification system and stable airflow organization, vertical laminar flow
cabinet meets the requirements of daily cell culture, sample processing and
precision operations. It is highly efficient, practical and cost-effective,
providing a continuous, stable and professional clean environment for
scientific research and production applications
Features
ü 1.HEPA
filter and UV life indicators facilitate a timely replacement plan .
ü
2.Two side glass windows installed for easy experiment
observation.
ü
3.Easy-to-change pre-filter installed could extend the HEPA
filter's lifetime.
ü
4.Equipped with temperature sensor to show the real temperature
during operation.
ü
5.Waterproof socket provide convenience for small instruments to
be used in the operating area.
Safety
Performance:
1.Front sliding sash interlock with
fan and UV lamp.
2.UV sterilization with UV lamp timing function.
3.Front sash and side windows are made of UV-resistant tempered
glass.
4.The host and sockets have independent capacitors to prevent
current overload.
5.Memory function in
case of power-failure
Specification
|
Parameter
|
LCB-V900E
|
LCB-V1100E
|
|
External Size
(WxDxH)
|
900×715×1700 mm
|
1050×715×1700 mm
|
|
Internal Size
(WxDxH)
|
800×650×570 mm
|
950×650×570 mm
|
|
Net / Gross
Weight
|
115 kg / 150 kg
|
130 kg / 170 kg
|
|
Shipping Size (WxDxH)
|
1040×850×1275 mm
|
1190×850×1275 mm
|
|
Shipping Volume
|
1.1 m³
|
1.28 m³
|
|
Waterproof Socket
|
1 pc
|
2 pcs
|
|
Work Surface
Height
|
750 mm (Shared
across both models)
|
|
Airflow &
Filtration
|
Velocity: 0.2–0.5
m/s (Adjustable) | Grade: Class 100 (ISO 5) | HEPA: >99.995% at 0.3μm
|
|
Electricals
|
Power: AC 220V,
50Hz | Consumption: 155W | UV Lamp: 20W×1 | LED Lamp: 6.5W×1
|
|
Material &
Sound
|
Body:
Electro-Galvanized steel | Worktop: 304 Stainless steel | Sound: ≤65 dB(A)
|
|
Standard
Accessories
|
Base Stand, LED
Lamp, UV Lamp, Waterproof Socket, Foot-master Caster
|
|
Optional
Accessories
|
Air Velocity
Sensor, New LCD, Gas/Water Tap, IV bar & hooks
|
