Vertical Laminar Flow Cabinet, Touch Screen Scitek Global price in Bangladesh

0 Customer Review

Work Surface Height : 730 mm
HEPA Filter : 1 pcs, Efficiency: > 99.995% at particle size of 0.3 μm
Air Volume :794 m³/h (467CFM); 1134m³/h (667CFM);
The vertical laminar flow cabinet is equipment removable stainless steel working surface, easy to pull out, convenient for cleaning and disinfection.

View More Info

0৳

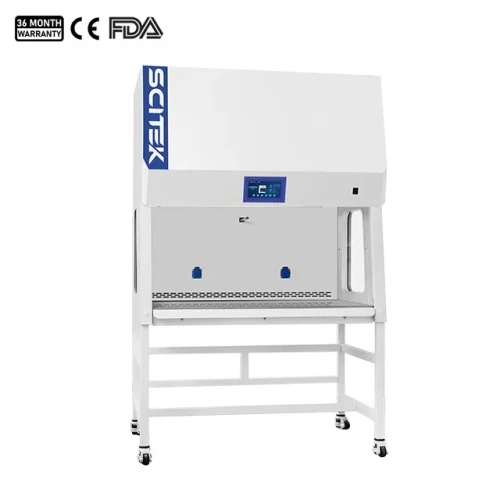

Vertical Laminar Flow Cabinet, Touch Screen Scitek Global

Ø Touch screen control and LCD display of human-machine interaction interface.

Ø Real-time monitoring and display of front window status, real-time display of operating status of each unit.

Ø UV disinfection and sterilization function and its timing function can be set by appointment.

Ø Safety status display and sound and light alarm prompt function as well as operation log and alarm log query and viewing function.

Ø Three-level login management authority, control function setting, parameter setting and hierarchical menu entry can be performed.

Ø With memory function in case of power failure, the function before power failure will be automatically executed after power is restored.

Ø Humanized design:

Ø The base stand and casters with leveling function, easy to move and fix safely.

Ø Low-noise design, energy-saving AC blower with built-in thermal protection, safe and efficient.

Ø Safety design:

Ø Blower overheat and overload protection function;

Ø UV lamp button protection function;

Ø Automatic Motorized tempered glass front window, control limit and travel limit dual protection;

Ø Front window descent delay function, sound reminder to prevent pinching.

Specification

Parameter Specification	LCB-V800I	LCB-V1100I
External Size (W×D×H)	800×750×1870 mm	1100×750×1870 mm
Internal Size (W×D×H)	700×660×560 mm	1000×660×560 mm
Max Opening / Work Surf Ht	400 mm / 730 mm	400 mm / 730 mm
Control System Display	LCD touch screen	LCD touch screen
Alarm Types	Audio & visual (Airflow, HEPA, UV, Window)	Audio & visual (Airflow, HEPA, UV, Window)
Airflow Velocity / Vol	0.3-0.5m/s / 794 m³/h (467CFM)	0.3-0.5m/s / 1134 m³/h (667CFM)
Pre-Filter / HEPA Filter	1pc G3 Poly. / >99.995% @ 0.3μm	1pc G3 Poly. / >99.995% @ 0.3μm
Cleanliness Grade	Class 100 (ISO 14644.1 Class 5)	Class 100 (ISO 14644.1 Class 5)
Cabinet Construction	Electro-Galv. steel, 304 SS bench	Electro-Galv. steel, 304 SS bench
Windows (Front / Side)	5mm Motorized / UV resistant	5mm Motorized / UV resistant
UV / LED Lamp	8W×1 (253.7nm) / 10W×2	30W×1 (253.7nm) / 16W×2
Max. Power Consumption	350 W	360 W
Power Supply	AC220V±10%, 50/60Hz; 110V±10%	AC220V±10%, 50/60Hz; 110V±10%
Illumination / Sound	>580 Lux / <64 dB(A)	>580 Lux / <64 dB(A)
Weight / Shipping Vol	190 kg / 1.7 m³	220 kg / 2.2 m³
Shipping Size (W×D×H)	950×1050×1620 mm	1250×1050×1620 mm[1][2]
