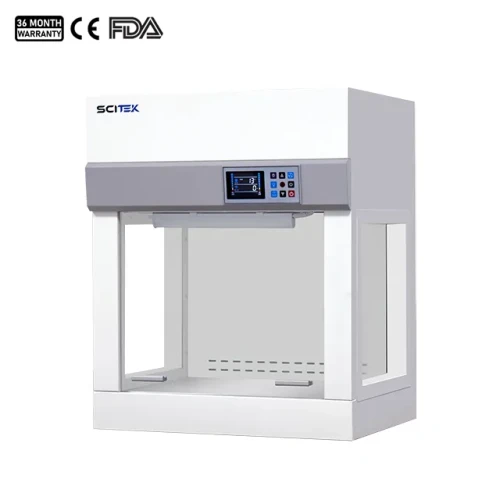

Mini Laminar Flow Cabinet 310mm Scitek Global
Mini laminar flow cabinet provides
sample protection as purified air travels across the working zone of the
cabinet in a vertical, unidirectional stream and leaves the main work chamber
across the entire open front of the cabinet.
Our mini vertical laminar flow
benches also have perforations at the back wall of the work zone which are
designed to eliminate air turbulence and the possibility of dead air corners in
the work zone.
Features
ü HEPA filter with efficiency: 99.995% at 0.3um. It also has
pre-filter which made of washable polyester fiber, can extend the life of the
HEPA filter.
ü Microprocessor control panel with soft button, LED/LCD display.
ü Table top, Manual front window is 5mm toughened glass, anti-UV.
ü Air speed adjustable.
ü UV lamp and front window has interlock function.
ü Desktop type, with a handle, saving space and easy to move.
ü Pre-filter is polyester fiber, washable and anti-ultraviolet
radiation.
ü Automatic cutting off UV lamp function by opening glass.
ü LCB-V500II have color screen LCD controller (with sterilization
timing, built-in socket controllable switch, front window status display, can
set three position interlock, cumulative work timing, remote control)
Specification
|
Parameter
|
Specification
|
|
Model
|
LCB-V500II
|
|
External Size (WxDxH)
|
580 x 460 x 700 mm
|
|
Internal Size (WxDxH)
|
480 x 340 x 370 mm
|
|
Max Opening
|
310 mm
|
|
Control System
|
Microprocessor controller with LCD display
(operating status indicator)
|
|
Airflow Velocity
|
0.2 ~ 0.6 m/s (Intelligent multi-level adjustable)
|
|
Pre-Filter
|
1 pc, Polyester fiber, washable
|
|
HEPA Filter
|
1 pc, Efficiency > 99.995% at 0.3 μm particle
size
|
|
Cleanliness Grade
|
Class 100 (ISO 14644.1 Class 5)
|
|
Partial Air Circulation
|
Perforations at back wall to eliminate air
turbulence and dead corners
|
|
Main Body Construction
|
Electro-galvanized steel with antimicrobial powder
coating
|
|
Work Surface
|
304 Stainless steel (Max bearing: 10 kg)
|
|
Front Window
|
Manual, 5 mm UV resistant tempered glass
|
|
UV Lamp / LED Lamp
|
8W x 1 / 8W x 1
|
|
Power Consumption
|
110W
|
|
Power Supply
|
AC 220V±10%, 50/60Hz; 110V±10%, 60Hz
|
|
Sound & Vibration
|
Sound: ≤ 62 dB | Vibration: ≤ 3 μm
|
|
Colony Count
|
Ancillary limit: ≤ 0.5 pcs/vessel (Petri dish φ
90mm)
|
|
Standard Accessories
|
LED Lamp (x1), UV Lamp (x1), Pre-filter (x1), HEPA
Filter (x1)
|
|
Weight (Net / Gross)
|
36 kg / 41 kg
|
|
Shipping Size & Vol.
|
710 x 590 x 850 mm | 0.36 m³
|
