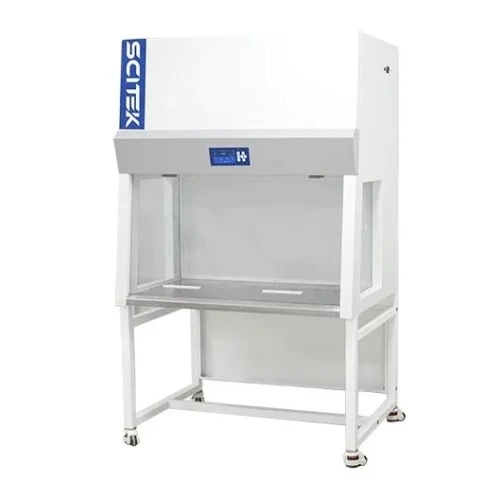

Horizontal Laminar Flow Cabinet Scitek Global
Horizontal laminar flow cabinet
provides a sterile work zone through a purified air that travels in a
horizontal, unidirectional stream and leaves main work chamber across the
entire open front of the cabinet. 1pcs prefilter laminar flow cabinet is a
popular product for labs. Preferred by large laboratories, pharmaceutical
manufacturing and other industries, now the best budget laminar flow cabinet
for sale at affordable price.
Features
1.
Ergonomic control panel location,
centered and angled down for an easy reach & viewing.
2.
Brushed stainless steel work surface
is for easy cleaning.
3.
The non-direct light source design
can effectively relieve the operator's visual fatigue under the condition of
ensuring the illumination.
4.
Intuitive and easy-to-use
microprocessor controller with LCD display, graphical and digital display of
the operating status of each function, such as filter life, UV life etc.
Reliability:
1.
Front sliding sash interlock with fan
and UV lamp.
2.
UV sterilization with UV lamp timing
function.
3.
Front sash and side windows are made
of UV-resistant tempered glass.
4.
The host and sockets have independent
capacitors to prevent current overload.
5.
Memory function in case of
power-failure.
Convenience:
1.
HEPA filter and UV life indicators
facilitate a timely replacement plan.
2.
Two side glass windows installed for
easy experiment observation.
3.
Easy-to-change pre-filter installed
could extend the HEPA filter’s lifetime.
4.
Equipped with temperature sensor to
show the real temperature during operation.
5.
Waterproof socket provide convenience
for small instruments to be used in the operating area.
Specification
|
Parameter /
Feature
|
LCB-H1100
|
LCB-H1300
|
|
External
Size (WxDxH)
|
1050x805x1950 mm
|
1320x805x1950 mm
|
|
Internal
Size (WxDxH)
|
950x490x574 mm
|
1220x490x574 mm
|
|
UV
Lamp
|
20W×2
|
30W×1
|
|
LED
Lamp
|
6.5W×1
|
9.6W×1
|
|
Power
Consumption
|
160W
|
170W
|
|
Gross
Weight
|
220 kg
|
260 kg
|
|
Shipping
Size (W×D×H)
|
1190x1010x1425 mm
|
1460x1010x1425 mm
|
|
Shipping
Volume
|
1.7 m³
|
2.3 m³
|
|
Work
Surface Height
|
750mm
|
|
Control
System
|
Microprocessor
controller with LCD display (Interlock & Life Indicator)
|
|
Airflow
Velocity
|
0.2~0.5
m/s, speed adjustable
|
|
Air
Filtration
|
Pre-Filter
(Washable) & HEPA Filter (>99.995% efficiency at 0.3μm), Class 100
|
|
Cabinet
Construction
|
Electro-Galvanized
steel main body (antimicrobial coating) & 304 Stainless steel work
surface
|
|
Windows
|
5mm
UV resistant tempered glass (Manual sliding front sash + Side window)
|
|
Electrical
& Power
|
AC220V±10%,
50/60Hz; 110V±10%, 60Hz. Illumination: ≥900Lux. Sound: ≤65dB(A)
|
|
Standard
Accessories
|
Base
Stand, LED Lamp, UV Lamp, 2x Waterproof Sockets, Air Velocity Sensor
|
|
Optional
Accessories
|
Gas
Tap, IV Bar with Hooks
|
