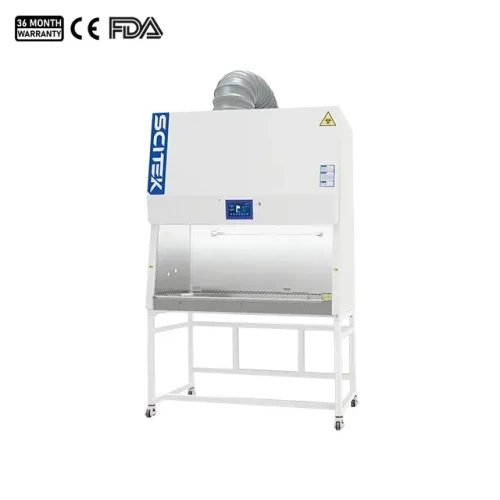

Biological Safety Cabinet Class II B2-1400 Scitek Global
The biohazard safety cabinet class ii is biological safety isolation equipment used in biological safety laboratories or other laboratories, It can prevent harmful or unknown biological particulate aerosol from escaping during operation, it's suitable for experiments with radioactive nuclides and volatile chemicals.
- Standard with Air velocity sensor.
Real-time monitoring and display Air velocity.
- Standard with Foot switch.
Controls the front window to up and down.
- Standard with Electric Air valve
control. It can be controlled through the LCD touch screen.
- Standard with RS485 interface.
- Depth of the cabinet is reduce to
780mm. Better access to the door of laboratory room.
Safety Performance:
- UV sterilization function and
timing function can be set by appointment.
- Automatic air speed adjustable.
- With memory function in case of
power-failure.
- Audio and visual alarm (Abnormal
airflow velocity, filter failure, UV lamp failure, Front window at unsafe
height).
- Interlock function: UV lamp and
front window; UV lamp and blower, LED lamp; Blower and front window.
Specification
|
Specification Parameter
|
Value / Details
|
|
External Size (W×D×H)
|
1400×780×2180 mm
|
|
Internal Size (W×D×H)
|
1300×626×600 mm
|
|
Inflow Air Volume
|
486 m³/h (286 CFM)
|
|
Down flow Air Volume
|
983 m³/h (579 CFM)
|
|
Exhaust Air Volume
|
1469 m³/h (865 CFM)
|
|
UV Lamp
|
30W × 1
|
|
LED Lamp
|
24W × 2
|
|
Sound Emission
|
≤65 dB(A)
|
|
Net Weight
|
323 kg
|
|
Gross Weight
|
404 kg
|
|
Shipping Size (Main Unit)
|
1550×1120×1710 mm
|
|
Shipping Size (Exhaust Blower)
|
700×700×500 mm
|
|
Shipping Volume
|
3.3 m³
|
|
Tested Opening
|
Safety height 200 mm (8”)
|
|
Max. Opening
|
400 mm
|
|
Work Surface Height
|
800 mm
|
|
Control System Display
|
LCD touch screen
|
|
Alarm System
|
Abnormal airflow velocity, ULPA filter failure, UV lamp
failure, Front window at unsafe height
|
|
Airflow Mode
|
100% air exhaust
|
|
Downflow Velocity
|
0.35±0.025 m/s
|
|
Inflow Velocity
|
0.52±0.025 m/s
|
|
ULPA Filter
|
2 pcs ULPA filter, ≥99.9995% efficiency at 0.1~0.3 μm, filter
life indicator
|
|
Cleanliness Grade
|
Class 10 (ISO14644.1 Class 4)
|
|
Cabinet Main Body
|
Electro-galvanized steel with antimicrobial Powder Coating
|
|
Work Surface Material
|
304 stainless steel
|
|
Front Window
|
Motorized, Toughened glass ≥ 5mm. Anti UV.
|
|
UV Decontamination
|
Emission of 253.7 nanometers for most efficient
decontamination, UV life indicator, UV timer.
|
|
Max. Power Consumption
|
1550W (Not include socket loading power consumption)
|
|
Power Supply
|
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
|
|
Illumination Level
|
≥1000 Lux
|
|
Vibration of Work Surface
|
≤5μm
|
Standard
Accessories: Base Stand, Air Velocity Sensor, ULPA
Filter, LCD Touch Screen, LED Lamp x2, UV Lamp x1, Waterproof Socket x2,
Footmaster Caster, Foot Switch, Electric Air Valve Control, RS485 interface,
Exhaust Blower, 9m Exhaust Duct (Φ305mm), Magnetic file folder.
Optional Accessories: LED
Lights With Adjustable Brightness, Gas Tap, Water Tap, IV Bar With Hooks,
Manual Adjustable Base Stand, Arm rest, Side windows, EC Blower
