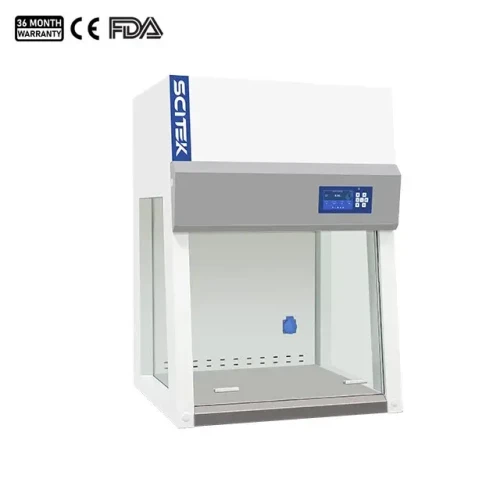

Biological Safety Cabinet Class I BSC-I-800 Scitek Global
Class
I biological safety cabinet is a biological safety isolation equipment used in
biological safety laboratories or other laboratories. It is usually used to
handle low-risk biological materials. The class 1 bsc is suitable for testing
samples without requiring protection. Protect Operator and the Environment.
Feature:
Humanized design:
1.
Memory function in
case of power-failure
2.
HEPA filter and UV
life indicators facilitate a timely replacement plan .
3.
UV lamp for
sterilization.
4.
Class 1 bsc is
equipped with temperature sensor to show the real temperature during operation.
5.
Waterproof socket
provide convenience for small instruments to be used in the operating area.
6.
Perforations at
the back wall of the work zone which are designed to eliminate air turbulence
and the possibility of dead air corners in the work zone.
Safety
Performance:
1.
Front sliding sash
interlock with fan and UV lamp
2.
Front sash and
side windows are made of UV-resistant tempered glass.
3.
The host and
sockets have independent capacitors to prevent current overload.
Specification
|
Model
|
BSC-I-800
|
|
External Size (W×D×H)
|
710×680×1050 mm (Without Base Stand)
|
|
710×680×1680 mm (With Base Stand)
|
|
Internal Size (W×D×H)
|
610×590×625 mm
|
|
Work Surface Height
|
750 mm
|
|
Control System
|
Display
|
Microprocessor controller with LCD display, display the
operating status of each function
|
|
Interlock
|
Front sliding sash interlock with fan and UV lamp
|
|
Life Indicator
|
HEPA filter and UV life indicators facilitate a timely
replacement plan
|
|
Airflow System
|
Airflow Velocity
|
0.2–0.5 m/s, Speed adjustable
|
|
Air filtration System
|
HEPA Filter
|
1 pcs, Efficiency: > 99.995% at particle size of 0.3
μm
|
|
Cleanliness Grade
|
Class 100 (ISO14644.1 Class 5)
|
|
Partial air circulation
|
Perforations at the back wall of the work zone which
are designed to eliminate air turbulence and the possibility of dead air
corners in the work zone.
|
|
Cabinet Construction
|
Main Body
|
Electro-Galvanized steel with antimicrobial powder
coating
|
|
Work Surface
|
304 Stainless steel, an angled front, rounded work
surface front edge
|
|
Front Window
|
Manual sliding sash: 5 mm UV resistant tempered glass
with counter-balance system and ergonomic handle
|
|
Side window
|
5 mm UV resistant tempered glass
|
|
Electrical System
|
UV Lamp
|
8 W×1
|
|
With timing function from 0 to 999 min
|
|
Interlock with front sliding sash.
|
|
Emission of 253.7 nanometers for best sterilization
effect.
|
|
LED Lamp
|
8W×1
|
|
Consumption
|
160W (Not include socket loading power consumption)
|
|
Power Supply
|
AC 220±10% V, 50/60 Hz; 110±10% V, 60 Hz
|
|
Illumination
|
≥500 Lux
|
|
Sound Emission
|
≤62 dB(A)
|
|
Standard Accessory
|
1. LED Lamp; 2. UV Lamp; 3. Waterproof Socket×1pcs; 4.
Air Velocity Sensor
|
|
Optional Accessory
|
1. Base stand; 2. Water Tap; 3. Gas Tap
|
|
Net Weight
|
80 kg (Without base stand), 130 kg (With base stand)
|
|
Gross Weight
|
115 kg (Without base stand), 165 kg (With base stand)
|
|
Shipping Size (W×D×H)
|
920×855×1190 mm
|
|
Shipping Volume
|
0.94 m³
|
