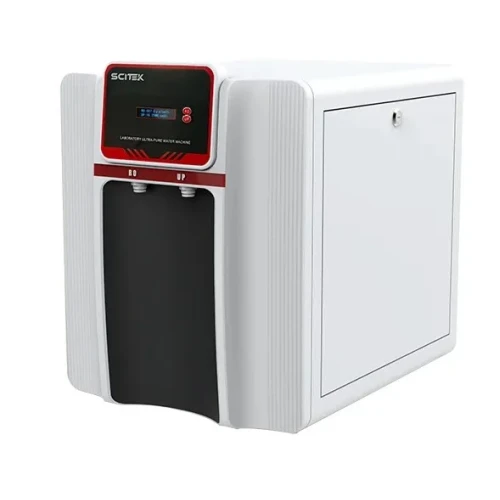

Ultrapure Water Machine Scitek Global
Features
1. The ultrapure water purification system has the functions
of power indication, pump work indication, low pressure indication and system
flushing indication.
2. Imported ion filter membrane and high-pressure, silent pure
water pump are adopted, the operation quality is more reliable, and
the water quality is more extensive.
3. It has the function of system flushing: before turning on the
water every time, the ultrapure water purification system will automatically
rinse for 30 seconds before the system starts to produce water.
4. The ultrapure water purification system has the function of
system protection: when the water pressure is too low or there is no water. The
equipment will automatically stop and beep to remind the user, and the
equipment will automatically start when the water source comes from the water.
Technological
advantages of water purifiers:
1. Control System:
The operation mode displays power,
water shortage, flushing, full water, RO water quality monitoring, deionized
water quality detection, etc.
2. Safety Performance:
It automatically enters the standby
state when there is no water or the water pressure is low, and enters the
standby state when the system is full of water (constant pressure).
3. Purification System:
Pretreatment unit: External softening
filter (optional for areas with high raw water hardness); 1μm deep PP filter
element * 2 + precision activated carbon filter element.
Specification
|
Parameter
|
WP-UB10BS
|
WP-UB20BS
|
|
Water Output (L/H)
|
10-15 L/H
|
20-25 L/H
|
|
Feed Water Quality
|
City tap water
|
City tap water
|
|
Feed TDS / Pressure
|
<1000 ppm / >0.1 Mpa
|
<1000 ppm / >0.1 Mpa
|
|
Feed Temperature
|
5-45℃
|
5-45℃
|
|
RO Water Conductivity
|
Source conductivity × 2% @25℃
|
Source conductivity × 2% @25℃
|
|
UP Water Resistivity
|
18.25 MΩ.cm @25℃
|
18.25 MΩ.cm @25℃
|
|
Heavy Metal Ion
|
< 0.01 ppb
|
< 0.01 ppb
|
|
TOC / Bacteria
|
<30 ppb / <0.1 cfu/ml
|
<30 ppb / <0.1 cfu/ml
|
|
Particle (0.2μm)
|
<1/ml
|
<1/ml
|
|
Outlets / Process
|
RO & UP (Two) / Reverse Osmosis
|
RO & UP (Two) / Reverse Osmosis
|
|
Storage Tank
|
Internal 3.2 gal (12L) pressure tank
|
Internal 3.2 gal (12L) pressure tank
|
|
Power Supply
|
AC 220V±10% (110V Optional)
|
AC 220V±10% (110V Optional)
|
|
External Size (W×D×H)
|
410 × 510 × 470 mm
|
410 × 510 × 470 mm
|
|
N.W. / G.W. (kg)
|
18.95 / 28
|
19.45 / 28
|
