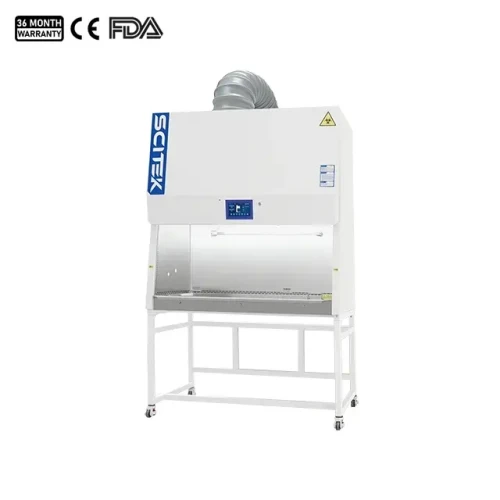

Biological Safety Cabinet Class II BSC-IIB2-1800 Scitek Global

The biohazard safety cabinet class ii is biological safety isolation equipment used in biological safety laboratories or other laboratories, It can prevent harmful or unknown biological particulate aerosol from escaping during operation, it's suitable for experiments with radioactive nuclides and volatile chemicals.

1. Standard with Air velocity sensor. Real-time monitoring and display Air velocity.
2. Standard with Foot switch. Controls the front window to up and down.
3. Standard with Electric Air valve control. It can be controlled through the LCD touch screen.
4. Standard with RS485 interface.
5. Depth of the cabinet is reduce to 780mm. Better access to the door of laboratory room.

Safety Performance:

1. UV sterilization function and timing function can be set by appointment.
2. Automatic air speed adjustable.
3. With memory function in case of power-failure.
4. Audio and visual alarm (Abnormal airflow velocity, filter failure, UV lamp failure, Front window at unsafe height).
5. Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; Blower and front window.

Specification

Specification Parameter	Value / Details
External Size (W×D×H)	1800×780×2180 mm
Internal Size (W×D×H)	1700×626×600 mm
Inflow Air Volume	636 m³/h (375 CFM)
Down flow Air Volume	1285 m³/h (757 CFM)
Exhaust Air Volume	1921 m³/h (1131 CFM)
UV Lamp	40W × 1
LED Lamp	60W×1 + 40W×1
Sound Emission	≤67 dB(A)
Net Weight	430 kg
Gross Weight	550 kg
Shipping Size (Main Unit)	1950×1120×1710 mm
Shipping Size (Exhaust Blower)	700×700×500 mm
Shipping Volume	4.0 m³
Tested Opening	Safety height 200 mm (8”)
Max. Opening	400 mm
Work Surface Height	800 mm
Control System Display	LCD touch screen
Alarm System	Abnormal airflow velocity, ULPA filter failure, UV lamp failure, Front window at unsafe height
Airflow Mode	100% air exhaust
Downflow Velocity	0.35±0.025 m/s
Inflow Velocity	0.52±0.025 m/s
ULPA Filter	2 pcs ULPA filter, ≥99.9995% efficiency at 0.1~0.3 μm, filter life indicator
Cleanliness Grade	Class 10 (ISO14644.1 Class 4)
Cabinet Main Body	Electro-galvanized steel with antimicrobial Powder Coating
Work Surface Material	304 stainless steel
Front Window	Motorized, Toughened glass ≥ 5mm. Anti UV.
UV Decontamination	Emission of 253.7 nanometers for most efficient decontamination, UV life indicator, UV timer.
Max. Power Consumption	1550W (Not include socket loading power consumption)
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Illumination Level	≥1000 Lux
Vibration of Work Surface	≤5μm

Standard Accessories: Base Stand, Air Velocity Sensor, ULPA Filter, LCD Touch Screen, LED Lamp x2, UV Lamp x1, Waterproof Socket x2, Footmaster Caster, Foot Switch, Electric Air Valve Control, RS485 interface, Exhaust Blower, 9m Exhaust Duct (Φ305mm), Magnetic file folder.

     Optional Accessories: LED Lights With Adjustable Brightness, Gas Tap, Water Tap, IV Bar With Hooks, Manual Adjustable Base Stand, Arm rest, Side windows, EC Blower
